C9200L-24P-4X-E is the Catalyst 9200L 24 ports full PoE+ 4x10G uplink Switch, with Network Essentials software. Cisco Catalyst 9200 Series switches extend the power of intent-based networking and Catalyst 9000 hardware and software innovation to a broader set of deployments. With its family pedigree, Catalyst 9200 Series switches offer simplicity without compromise it is secure, always on, and IT simplified.

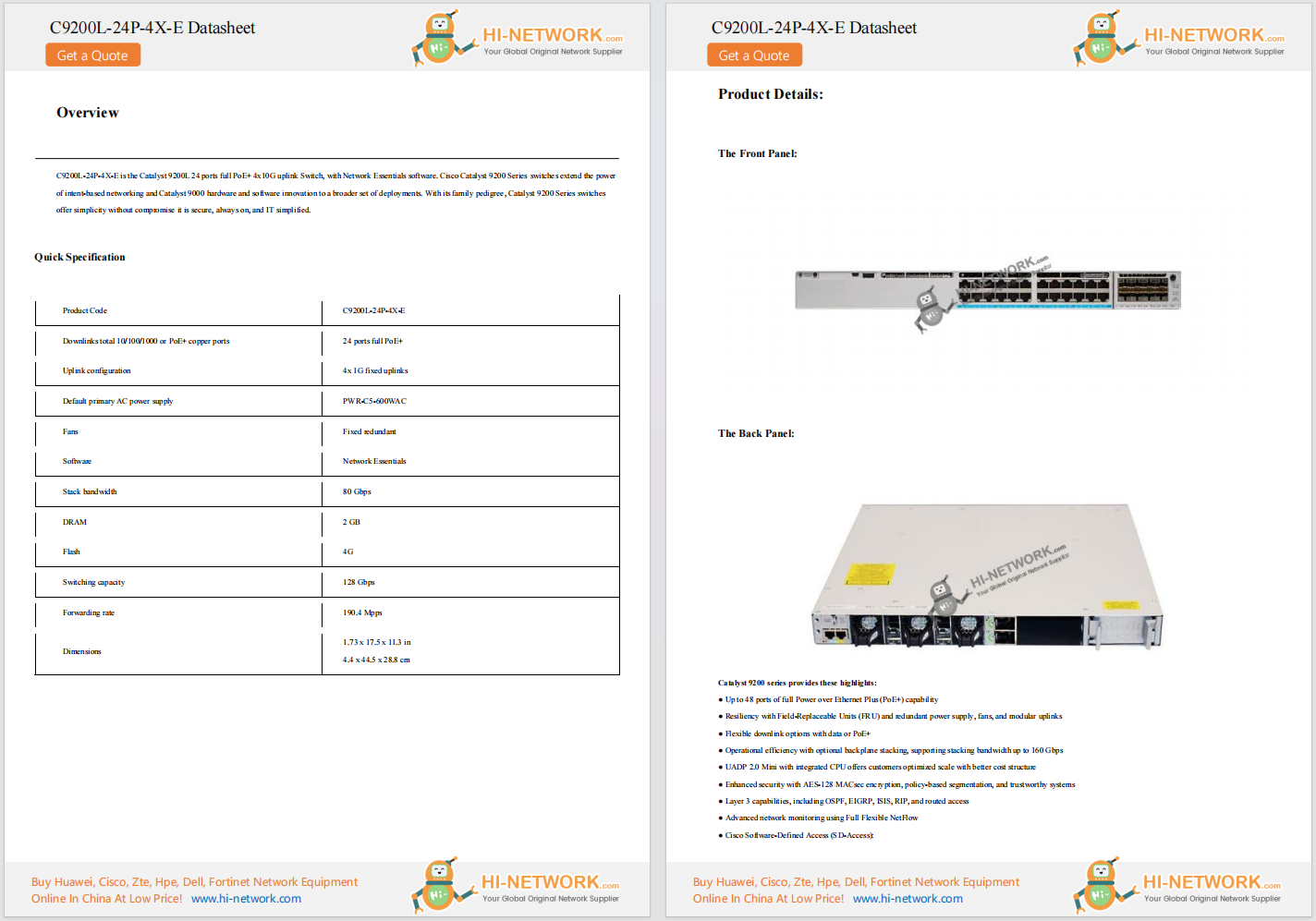

Download Datasheet: Cisco C9200l-24P-4X-E Datasheet.pdf
Quick Specification:
| Product Code | C9200L-24P-4X-E |
| Downlinks total 10/100/1000 or PoE+ copper ports | 24 ports full PoE+ |
| Uplink configuration | 4x 1G fixed uplinks |
| Default primary AC power supply | PWR-C5-600WAC |
| Fans | Fixed redundant |
| Software | Network Essentials |
| Stack bandwidth | 80 Gbps |
| DRAM | 2 GB |
| Flash | 4G |
| Switching capacity | 128 Gbps |
| Forwarding rate | 190.4 Mpps |
| Dimensions | 1.73 x 17.5 x 11.3 in4.4 x 44.5 x 28.8 cm |

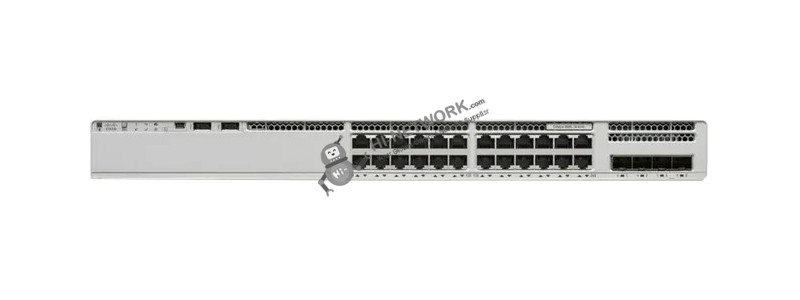

The Front Panel:

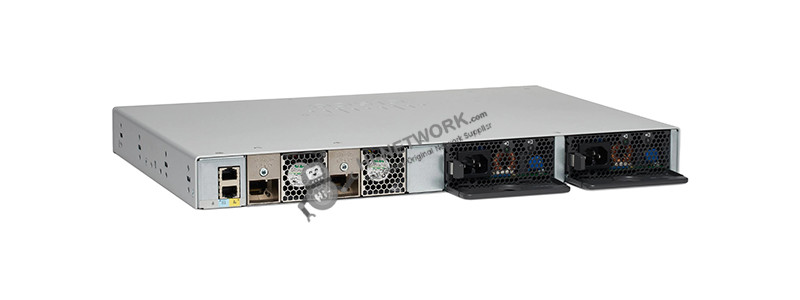

The Back Panel:
Catalyst 9200 series provides these highlights:
● Up to 48 ports of full Power over Ethernet Plus (PoE+) capability
● Resiliency with Field-Replaceable Units (FRU) and redundant power supply, fans, and modular uplinks
● Flexible downlink options with data or PoE+
● Operational efficiency with optional backplane stacking, supporting stacking bandwidth up to 160 Gbps
● UADP 2.0 Mini with integrated CPU offers customers optimized scale with better cost structure
● Enhanced security with AES-128 MACsec encryption, policy-based segmentation, and trustworthy systems
● Layer 3 capabilities, including OSPF, EIGRP, ISIS, RIP, and routed access
● Advanced network monitoring using Full Flexible NetFlow
● Cisco Software-Defined Access (SD-Access):
● Simplified operations and deployment with policy-based automation from edge to cloud managed with Cisco Identity Services Engine (ISE)
●Network assurance and improved resolution time through Cisco DNA Center™
● Plug and Play (PnP) enabled: A simple, secure, unified, and integrated offering to ease new branch or campus device rollouts or updates to an existing network
● Cisco IOS XE: A Common Licensing based operating system for the enterprise Cisco Catalyst 9000 product family with support for model-driven programmability
and streaming telemetry
● ASIC with programmable pipeline and micro-engine capabilities, along with template-based, configurable allocation of Layer 2 and Layer 3 forwarding, AccessControl Lists (ACLs), and Quality of Service (QoS) entries
The Accessories for C9200L
Modules and Cables:
| Model | Description |
| C9200-STACK-KIT= | C9200 Stack Kit Spare |
| C9200L-STACK-KIT= | C9200L Stack Kit Spare |
| STACK-T4-50CM | 50CM Type 3 Stacking Cable |
| STACK-T4-1M | 1M Type 3 Stacking Cable |
| STACK-T4-3M | 3M Type 3 Stacking Cable |
| PWR-C5-600WAC/2= | 600WAC power supply spare |
Compare To Similar Items:
| Product number | Product description |
| C9200L-24T-4X-A | Catalyst 9200L 24-port Data 4x10G uplink Switch, Network Advantage |
| C9200L-24T-4X-E | Catalyst 9200L 24-port Data 4x10G uplink Switch, Network Essentials |
| C9200L-24P-4X-A | Catalyst 9200L 24-port PoE+ 4x10G uplink Switch, Network Advantage |
| C9200L-24P-4X-E | Catalyst 9200L 24-port PoE+ 4x10G uplink Switch, Network Essentials |
Read more by downloading the Cisco C9200l-24P-4X-E datasheet: Cisco C9200l-24P-4X-E Datasheet.pdf
For more datasheets, please go to the Download tab on each product details page, or search in the Datasheet Download Center.
