Huawei CloudEngine Switch S6730-S24X6Q Datasheet
Publish Time: 14 Feb, 2025

Huawei CloudEngine Switch S6730-S24X6Q (02353AJW/-001/-003/-004)

CloudEngine S6730-S series full-featured 10 GE switches are Huawei's new generation fixed switches ,to provide 10 GE downlink ports as well as 40 GE uplink ports.

CloudEngine S6730-S can be used to provide high-speed access for 10 Gbit/s access to high-density servers or function as a core/aggregation switch on a campus network to provide 40 Gbit/s rate. In addition, CloudEngine S6730-S provides a wide variety of services, comprehensive security policies, and various QoS features to help customers build scalable, manageable,reliable, and secure campus and data center networks.

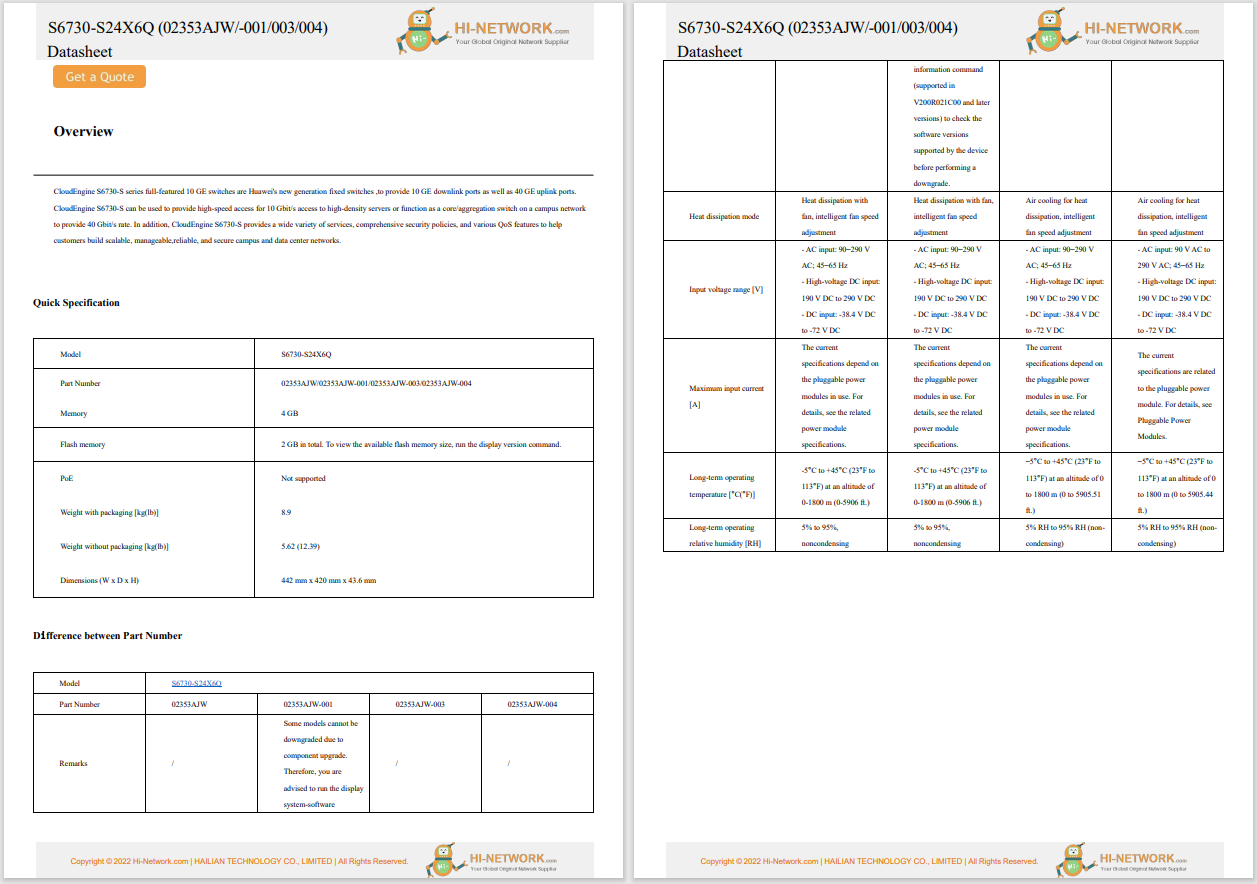

s6730-s24x6q datasheet

Download Datasheet: huawei-s6730-s24x6q-brochure-datasheet.pdf

For more datasheets, please go to the Download tab on each product details page, or search in the Datasheet Download Center.


Quick Specification:

ModelS6730-S24X6Q
Part Number02353AJW/02353AJW-001/02353AJW-003/02353AJW-004
Memory4 GB
Flash memory2 GB in total. To view the available flash memory size, run the display version command.
PoENot supported
Weight with packaging [kg(lb)]8.9
Weight without packaging [kg(lb)]5.62 (12.39)
Dimensions (W x D x H)442 mm x 420 mm x 43.6 mm


Difference between Part Numbers:


ModelS6730-S24X6Q
Part Number02353AJW02353AJW-00102353AJW-00302353AJW-004
Remarks/Some models cannot be downgraded due to component upgrade. Therefore, you are advised to run the display system-software information command (supported in V200R021C00 and later versions) to check the software versions supported by the device before performing a downgrade.//
Heat dissipation modeHeat dissipation with fan, intelligent fan speed adjustmentHeat dissipation with fan, intelligent fan speed adjustmentAir cooling for heat dissipation, intelligent fan speed adjustmentAir cooling for heat dissipation, intelligent fan speed adjustment
Input voltage range [V]- AC input: 90–290 V AC; 45–65 Hz- High-voltage DC input: 190 V DC to 290 V DC- DC input: -38.4 V DC to -72 V DC- AC input: 90–290 V AC; 45–65 Hz- High-voltage DC input: 190 V DC to 290 V DC- DC input: -38.4 V DC to -72 V DC- AC input: 90–290 V AC; 45–65 Hz- High-voltage DC input: 190 V DC to 290 V DC- DC input: -38.4 V DC to -72 V DC- AC input: 90 V AC to 290 V AC; 45–65 Hz- High-voltage DC input: 190 V DC to 290 V DC- DC input: -38.4 V DC to -72 V DC
Maximum input current [A]The current specifications depend on the pluggable power modules in use. For details, see the related power module specifications.The current specifications depend on the pluggable power modules in use. For details, see the related power module specifications.The current specifications depend on the pluggable power modules in use. For details, see the related power module specifications.The current specifications are related to the pluggable power module. For details, see Pluggable Power Modules.
Long-term operating temperature [°C(°F)]-5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)-5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)–5°C to +45°C (23°F to 113°F) at an altitude of 0 to 1800 m (0 to 5905.51 ft.)–5°C to +45°C (23°F to 113°F) at an altitude of 0 to 1800 m (0 to 5905.44 ft.)
Long-term operating relative humidity [RH]5% to 95%, noncondensing5% to 95%, noncondensing5% RH to 95% RH (non-condensing)5% RH to 95% RH (non-condensing)

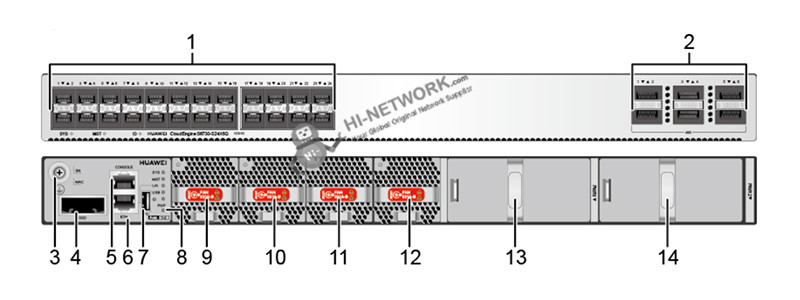

Appearance:

s6730-s24x6q-datasheet


①Twenty-four 10GE SFP+ portsApplicable modules and cables:· GE optical module· GE-CWDM optical module· GE-DWDM optical module· GE copper module· 10GE SFP+ optical module (OSXD22N00 not supported)· 10GE-CWDM optical module· 10GE-DWDM optical module· 1 m, 3 m, 5 m, and 10 m SFP+ high-speed copper cables· 3 m and 10 m SFP+ AOC cables0.5 m and 1.5 m SFP+ dedicated stack cables (supported by the last 16 SFP+ ports and used only for zero-configuration stacking)
②Six 40GE QSFP+ optical portsApplicable modules and cables:· QSFP+ optical module· 1 m, 3 m, and 5 m QSFP+ to QSFP+ high-speed copper cables· 10 m QSFP+ to QSFP+ AOC cable2 m QSFP28 dedicated stack cable (supported in V200R020C10 and later versions)
③Ground screw
④SSD card slot
⑤One console port
⑥One ETH management port
⑦One USB port
⑧One PNP button
⑨Fan module slot 1
⑩Fan module slot 2
⑪Fan module slot 3
⑫Fan module slot 4
⑬Power module slot 1
⑭Power module slot 2

The Accessories for S6730-S24X6Q

Recommended Elements:

ModelsDescriptions
eSFP-GE-SX-MM850Optical Transceiver,eSFP,GE,Multi-mode Module(850nm,0.55km,LC)
SFP-GE-LX-SM1310Optical Transceiver,eSFP,GE,Single-mode Module(1310nm,10km,LC)
S-SFP-GE-LH40-SM1310Optical Transceiver,eSFP,GE,Single-mode Module(1310nm,40km,LC)
S-SFP-GE-LH40-SM1550Optical Transceiver,eSFP,GE,Single-mode Module(1550nm,40km,LC)
S-SFP-GE-LH80-SM1550Optical Transceiver,eSFP,GE,Single-mode Module(1550nm,80km,LC)
eSFP-GE-ZX100-SM1550Optical Transceiver,eSFP,GE,Single-mode Module(1550nm,100km,LC)
SFP-GE-LX-SM1310-BIDIOptical Transceiver,eSFP,GE,BIDI Single-mode Module(TX1310/RX1490,10km,LC)
SFP-GE-LX-SM1490-BIDIOptical Transceiver,eSFP,GE,BIDI Single-mode Module(TX1490/RX1310,10km,LC)
LE2MGSC40DE0Optical Transceiver,eSFP,GE,BIDI Single-mode Module(TX1310/RX1490,40km,LC)
LE2MGSC40ED0Optical Transceiver,eSFP,GE,BIDI Single-mode Module(TX1490/RX1310,40km,LC)
SFP-GE-ZBXD1Optical Transceiver,eSFP,GE,BIDI Single-mode Module(1570nm(Tx)/1490nm(Rx),80km,LC)
SFP-GE-ZBXU1Optical Transceiver,eSFP,GE,BiDi Single-mode Module(1490nm(Tx)/1570nm(Rx),80km,LC)
SFP-GE-BXU1-SC1000Base,BIDI Optical Transceiver,SFP,GE,Single-mode Module(TX1490nm/RX1310nm,10km,SC)
CWDM-SFPGE-1471CWDM Optical Transceiver,eSFP,2.5G,Single-mode Module(1471nm,80km,LC)
CWDM-SFPGE-1491CWDM Optical Transceiver,eSFP,2.5G,Single-mode Module(1491nm,80km,LC)
CWDM-SFPGE-1511CWDM Optical Transceiver,eSFP,2.5G,Single-mode Module(1511nm,80km,LC)
CWDM-SFPGE-1531CWDM Optical Transceiver,eSFP,2.5G,Single-mode Module(1531nm,80km,LC)
CWDM-SFPGE-1551CWDM Optical Transceiver,eSFP,2.5G,Single-mode Module(1551nm,80km,LC)
CWDM-SFPGE-1571CWDM Optical Transceiver,eSFP,2.5G,Single-mode Module(1571nm,80km,LC)
CWDM-SFPGE-1591CWDM Optical Transceiver,eSFP,2.5G,Single-mode Module(1591nm,80km,LC)
CWDM-SFPGE-1611CWDM Optical Transceiver,eSFP,2.5G,Single-mode Module(1611nm,80km,LC)
DWDM-SFPGE-1560-61DWDM Optical Transceiver,eSFP,2.5G,Single-mode Module(1560.61nm,120km,LC)
SFP-1000BaseTElectrical Transceiver,SFP,GE,Electrical Interface Module(100m,RJ45)
SFP-10G-USR10GBase-USR Optical Transceiver,SFP+,10G,Multi-mode Module(850nm,0.1km,LC)
OMXD30000Optical Transceiver,SFP+,10G,Multi-mode Module(850nm,0.3km,LC)
SFP-10G-iLROptical Transceiver,SFP+,10G,Single-mode Module(1310nm,1.4km,LC)
OSX010000Optical Transceiver,SFP+,10G,Single-mode Module(1310nm,10km,LC)
OSX040N01Optical Transceiver,SFP+,10G,Single-mode Module(1550nm,40km,LC)
SFP-10G-ER-1310Optical Transceiver,SFP+,10G,Single-mode Module(1310nm,40km,LC)
SFP-10G-ZR10GBase-ZR Optical Transceiver,SFP+,10G,Single-mode Module(1550nm,80km,LC)
SFP-10G-BXU110GBase,BIDI Optical Transceiver,SFP+,10G,Single-mode Module(TX1270nm/RX1330nm,10km,LC)
SFP-10G-BXD110GBase,BIDI Optical Transceiver,SFP+,10G,Single-mode Module(TX1330nm/RX1270nm,10km,LC)
SFP-10G-ER-SM1330-BIDIOptical Transceiver,SFP+,10G,BIDI Single-mode Module(TX 1330nm/RX 1270nm,40km,LC)
SFP-10G-ER-SM1270-BIDIOptical Transceiver,SFP+,10G,BIDI Single-mode Module(TX 1270nm/RX 1330nm,40km,LC)
SFP-10G-ZCW1471Optical Transceiver,SFP+,10G,Single-mode Module(CWDM,1471nm,70km,LC)
SFP-10G-ZCW1491Optical Transceiver,SFP+,10G,Single-mode Module(CWDM,1491nm,70km,LC)
SFP-10G-ZCW1511Optical Transceiver,SFP+,10G,Single-mode Module(CWDM,1511nm,70km,LC)
SFP-10G-ZCW1531Optical Transceiver,SFP+,10G,Single-mode Module(CWDM,1531nm,70km,LC)
SFP-10G-ZCW1551Optical Transceiver,SFP+,10G,Single-mode Module(CWDM,1551nm,70km,LC)
SFP-10G-ZCW1571Optical Transceiver,SFP+,10G,Single-mode Module(CWDM,1571nm,70km,LC)
SFP-10G-ZCW1591Optical Transceiver,SFP+,10G,Single-mode Module(CWDM,1591nm,70km,LC)
SFP-10G-ZCW1611Optical Transceiver,SFP+,10G,Single-mode Module(CWDM,1611nm,70km,LC)
QSFP-40G-SR440GBase-SR4 Optical Transceiver,QSFP+,40G,Multi-mode (850nm,0.15km,MPO)
QSFP-40G-iSR440GBase-iSR4 Optical Transceiver,QSFP+,40G,Multi-mode (850nm,0.15km,MPO)(Connect to four SFP+ Optical Transceiver)
QSFP-40G-eSR440GBase-eSR4 Optical Transceiver,QSFP+,40G,Multi-mode (850nm,0.3km,MPO)(Connect to four SFP+ Optical Transceiver)
QSFP-40G-iSM440GBase-iSM4 Optical Transceiver,QSFP+,40G,Single-mode Module (1310nm,1.4km,MPO)(Connect to four SFP+ Optical Transceiver)
QSFP-40G-eSM440GBase-eSM4 Optical Transceiver,QSFP+,40G,Single-mode Module (1310nm,10km,MPO)(Connect to four SFP+ Optical Transceiver)


Compare to Similar Items:

ModelsS6720-30C-EI-24S-ACS6730-S24X6Q
Switching Capacity2.56 Tbit/s960Gbps/2.4Tbps
Forwarding Performance720 Mpps480 Mpps
Fixed Ports24 x 10 GE SFP+, 2 x 40 GE QSFP+ ports24 x 10 Gig SFP+, 6 x 40 Gig QSFP+
Power SupplyAC Power SupplyAC/DC Power Supply
Dimensions (W x D x H)442 mm x 420 mm x 44.4 mm442 mm x 420 mm x 43.6 mm
Input VoltageAC:Rated voltage range: 100V to 240V, 50 Hz/60 HzMaximum voltage range: 90V to 264V, 50 Hz/60 Hz
