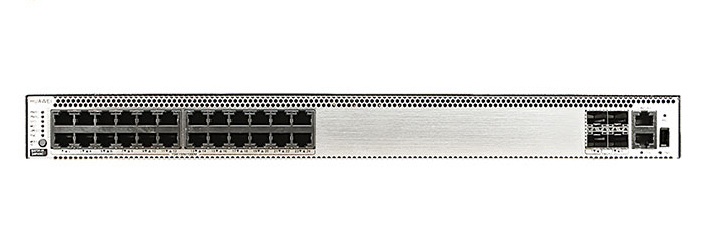

The Huawei S5731-H24T4XC is a next-generation intelligent gigabit fixed switch, part of the CloudEngine S5731-H series. Designed to meet the evolving needs of modern networks, it offers robust performance, advanced features, and flexibility for various networking environments.
Key Features
▪ High-Density Ports: 24 x 10/100/1000BASE-T Ethernet ports and 4 x 10GE SFP+ uplink ports.
▪ Flexible Expansion: One extended slot supporting modules like 2 x 40GE QSFP+, 2 x 25GE SFP28, or 8 x 10GE SFP+ cards.
▪ Advanced Security: Built-in security probes for abnormal traffic detection and threat analysis, even in encrypted traffic.
▪ Unified Management: Integrated WLAN AC capabilities managing up to 1,024 wireless APs, enabling seamless wired and wireless convergence.
▪ Cloud Management: Supports both cloud and on-premise management modes for flexible network operations.
▪ High Reliability: Dual power slots supporting various AC and DC power modules, ensuring continuous operation.
▪ Energy Efficiency: Designed with energy-saving features to reduce operational costs.
Technical Specifications
Ports: 24 x 10/100/1000BASE-T Ethernet ports, 4 x 10GE SFP+ uplink ports
Expansion Slot: One slot supporting modules like 2 x 40GE QSFP+, 2 x 25GE SFP28, or 8 x 10GE SFP+ cards
Switching Capacity: 288 Gbps / 672 Gbps
Dimensions (H x W x D): 43.6 mm x 442 mm x 420 mm
Power Supply Options: 600 W AC, 150 W AC, or 1000 W DC (pluggable modules)
Operating Temperature: -5°C to +45°C (23°F to 113°F) at altitudes of 0-1800 m
Weight (with packaging): 8.4 kg (18.52 lb)
Use Cases
The S5731-H24T4XC is versatile and suitable for:
▪ Campus Networks: Serving as an access or aggregation switch in large and medium-sized campuses.
▪ Branch Offices: Acting as a core switch in branch networks, providing reliable and high-speed connectivity.
▪ Data Centers: Functioning as an access switch, delivering gigabit connectivity to servers and other devices.
Management and Maintenance
The switch offers:
▪ Cloud Management: Allows configuration, monitoring, and inspection via Huawei's cloud platform, reducing on-site deployment and operational costs.
▪ On-Premise Management: Supports traditional management methods for organizations preferring local control.
▪ Open Programmability System (OPS): Enables IT administrators to program O&M functions using Python scripts for intelligent operations and maintenance.
Security Features
To ensure network security, the S5731-H24T4XC includes:
▪ Abnormal Traffic Detection: Identifies and analyzes unusual traffic patterns to detect potential threats.
▪ Encrypted Communications Analytics (ECA): Analyzes encrypted traffic to identify threats without compromising data privacy.
▪ Network-Wide Threat Deception: Implements deceptive measures across the network to mislead and detect malicious actors.
Energy Efficiency
Designed with energy efficiency in mind, the switch:
▪ Reduces Power Consumption: Implements energy-saving technologies to lower operational costs.
▪ Supports Variable Fan Speeds: Adjusts fan speeds based on temperature, reducing unnecessary energy usage.
Conclusion
The Huawei S5731-H24T4XC is a feature-rich, high-performance switch suitable for various networking environments. Its advanced capabilities, flexibility, and security features make it an excellent choice for organizations seeking to enhance their network infrastructure.
Huawei CloudEngine Switch S5731-H24T4XC
Huawei All Series Switches New and Used
For Huawei product list and quote, please visit: https://www.hi-network.com/categories/huawei or contact us at www.hi-network.com (Email: [email protected])
S5731-H24T4XC (02352QPP/02352QPP-001/02352QPP-005)
Version Mapping
Table 4-1480 lists the mapping between the S5731-H24T4XC chassis and software versions.
Table 4-1480 Version mapping
| Series | Model | Software Version |
|---|---|---|
| S5731-H | S5731-H24T4XC | 02352QPP: V200R013C02 and later versions02352QPP-001: V200R020C10 and later versions02352QPP-005: V200R021C10SPC600 and later versions (If V200R021C10SPC500 is used, install V200R021HP0121 or a later patch. If V200R021C00SPC100 is used, install V200R021SPH013 or a later patch.) |
Appearance and Structure
Figure 4-579 S5731-H24T4XC (02352QPP) appearance
Figure 4-580 S5731-H24T4XC (02352QPP-001/02352QPP-005) appearance
| 1 | Twenty-four 10/100/1000BASE-T ports | 2 | Four 10GE SFP+ portsApplicable modules and cables:GE optical moduleGE-CWDM optical moduleGE-DWDM optical moduleGE copper module (100M/1000M auto-sensing)10GE SFP+ optical module (OSXD22N00 not supported)10GE-CWDM optical module10GE-DWDM optical modulePEN remote optical modules (V200R024C00 and later versions)1 m, 3 m, 5 m, and 10 m SFP+ high-speed copper cables3 m and 10 m SFP+ AOC cables0.5 m and 1.5 m SFP+ dedicated stack copper cables (used for zero-configuration stacking) |
| 3 | One console port | 4 | One ETH management port |
| 5 | One USB port | 6 | One PNP buttonNOTICE:To restore the factory settings and reset the switch, hold down the button for at least 6 seconds.To reset the switch, press the button.Resetting the switch will cause service interruption. Exercise caution when you press the PNP button. |
| 7 | Ground screwNOTE:It is used with a ground cable. | 8 | Rear card slotNOTE:Applicable card:ES5D21X08T00ES5D21Q02Q00S7X08000 (02312URW) (applicable in V200R019C10 and later versions)S7X08000 (02312URW-002) (applicable in V200R021C10SPC600 and later versions)S7Q02001 (02313UBW) (applicable in V200R021C01 and later versions)S7Q02001 (02313UBW-002) (applicable in V200R021C10SPC600 and later versions) |
| 9 | Fan module slot 1NOTE:Applicable fan module: FAN-023A-B (Fan Box (B, Fan Panel Side Exhaust)) | 10 | Fan module slot 2NOTE:Applicable fan module: FAN-023A-B (Fan Box (B, Fan Panel Side Exhaust)) |
| 11 | Power module slot 1NOTE:Applicable power module:PAC600S12-CB (600 W AC&240 V DC Power Module)PAC600S12-EB (600 W AC&240 V DC Power Module)PAC600S12-DB (600 W AC&240 V DC Power Module) (applicable in V200R020C10 and later versions)PDC1000S12-DB (1000 W DC Power Module)PAC150S12-R (150 W AC Power Module)PDC180S12-CR (180 W DC Power Module) (applicable in V200R020C00 and later versions) | 12 | Power module slot 2NOTE:Applicable power module:PAC600S12-CB (600 W AC&240 V DC Power Module)PAC600S12-EB (600 W AC&240 V DC Power Module)PAC600S12-DB (600 W AC&240 V DC Power Module) (applicable in V200R020C10 and later versions)PDC1000S12-DB (1000 W DC Power Module)PAC150S12-R (150 W AC Power Module)PDC180S12-CR (180 W DC Power Module) (applicable in V200R020C00 and later versions) |
Port Description
10/100/1000BASE-T port
A 10/100/1000BASE-T Ethernet electrical port sends and receives service data at 10/100/1000 Mbit/s, and must use an Ethernet cable. Table 4-1481 describes the attributes of a 10/100/1000BASE-T Ethernet electrical port.
Table 4-1481 Attributes of a 10/100/1000BASE-T Ethernet electrical port
| Attribute | Description |
|---|---|
| Connector type | RJ45 |
| Standards compliance | IEEE802.3, IEEE802.3u, IEEE802.3ab |
| Working mode | 10/100/1000 Mbit/s auto-sensing |
| Maximum transmission distance | 100 m |
10GE SFP+ optical port
A 10GE SFP+ Ethernet optical port supports auto-sensing to 1000 Mbit/s. It sends and receives service data at 1000 Mbit/s or 10 Gbit/s. Table 4-1482 describes the attributes of a 10GE SFP+ Ethernet optical port.
Table 4-1482 Attributes of a 10GE SFP+ port
| Attribute | Description |
|---|---|
| Connector type | LC/PC |
| Optical port attributes | Depend on the optical module used |
| Standards compliance | IEEE802.3ae |
| Working mode | GE/10GE auto-sensing |
Console port
The console port is connected to a console for on-site configuration. The port must use a console cable. The console port is used when a switch is powered on for the first time. For details about the attributes of a console port, see Table 4-1483.
Table 4-1483 Attributes of a console port
| Attribute | Description |
|---|---|
| Connector type | RJ45 |
| Standards compliance | RS-232 |
| Working mode | Duplex Universal Asynchronous Receiver/Transmitter (UART) |
| Baud rate | 9600 bit/s, 19200 bit/s, 38400 bit/s, 57600 bit/s, or 115200 bit/sDefault value: 9600 bit/s |
ETH management port
You can connect a switch to a configuration terminal or network management workstation through the ETH management port to configure the switch locally or remotely. The port must use an Ethernet cable. You can choose to download the software package through the ETH management port in the BootLoad menu. File transfer through the ETH management port is faster than transfer through the console port. Table 4-1484 describes the attributes of an ETH management port.
Table 4-1484 Attributes of an ETH management port
| Attribute | Description |
|---|---|
| Connector type | RJ45 |
| Standards compliance | IEEE802.3 |
| Working Mode | 10/100 Mbit/s auto-sensing |
| Maximum transmission distance | 100 mIn V200R012C00 and later versions, you can log in to the switch that contains the ETH management port for the first time through the ETH port. For details, see "First Login to a Switch" in the Configuration Guide - Basic Configuration. If you have logged in to the switch for the first time by pressing and holding the MODE button for 6 seconds or longer and saved the configuration, the default configuration on the ETH port will be cleared. In this case, you cannot log in to the switch for the first time through the ETH port. You are advised to log in to the switch for the first time through the ETH port. |
USB port
The USB port can have a USB flash drive connected to upgrade the switch, or transfer configuration files or other files. The USB port can only connect to a USB flash drive that complies with USB 2.0.
USB flash drives from different vendors differ in model compatibility and drivers. If a USB flash drive cannot be used, try to replace it with another one from a mainstream vendor. Switches support a maximum of 128 GB USB flash drives.
Indicator Description
The S5731-H24T4XC has similar indicators to those on the S5731-H48P4XC except that the S5731-H24T4XC does not have a PoE mode indicator. For details, see Indicator Description.
Power Supply Configuration
The switch can use a single power module or double power modules for 1+1 power redundancy. Pluggable AC and DC power modules can be used together in the same switch. However, the power modules with natural heat dissipation and the power modules with fan cannot be used at the same time.
Heat Dissipation
The S5731-H24T4XC uses pluggable fan modules for forced air cooling. Air flows in from the front side and exhausts from the rear panel.
This figure only shows the airflow direction and does not depict the actual device.
Technical Specifications
Table 4-1485 lists technical specifications of the S5731-H24T4XC.
Table 4-1485 Technical specifications
| Item | Description |
|---|---|
| Memory (RAM) | 4 GB |
| Flash | 1 GB in total. To view the available flash memory size, run the display version command. |
| Mean time between failures (MTBF) | 57.73 years |
| Mean time to repair (MTTR) | 2 hours |
| Availability | > 0.99999 |
| Service port surge protection | Common mode: ±6 kV |
| Power supply surge protection | Using AC power modules: ±6 kV in differential mode, ±6 kV in common modeUsing DC power modules: ±2 kV in differential mode, ±4 kV in common mode |
| Dimensions (H x W x D) | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.)Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 43.6 mm x 442.0 mm x 448.0 mm (1.72 in. x 17.4 in. x 17.7 in.) |
| Weight (with packaging) | 8.4 kg (18.52 lb) |
| Stack ports | 10GE SFP+ ports on the front panel, or ports on the rear card |
| RTC | Supported |
| RPS | Not supported |
| PoE | Not supported |
| Rated voltage range | AC input: 100 V AC to 240 V AC, 50/60 HzHigh-Voltage DC input: 240 V DCDC input: -48 V DC to -60 V DC |
| Maximum voltage range | AC input: 90 V AC to 290 V AC, 45 Hz to 65 HzHigh-Voltage DC input: 190 V DC to 290 V DCDC input: -38.4 V DC to -72 V DC |
| Maximum power consumption (100% throughput, full speed of fans) | 114 W (without card) |
| Typical power consumption (30% of traffic load, tested according to ATIS standard) | 88 W (without card) |
| Operating temperature | -5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)NOTE:When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).The switch cannot be started when the ambient temperature is lower than 0°C (32°F). |
| Storage temperature | -40°C to +70°C (-40°F to +158°F) |
| Noise under normal temperature (27°C, sound power) | < 57.5 dB(A) |
| Relative humidity | 5% to 95%, noncondensing |
| Operating altitude | 0-5000 m (0-16404 ft.) |
| Certification | EMC certificationSafety certificationManufacturing certification |
| Part number | 02352QPP02352QPP-00102352QPP-005 |
