Introduction to Huawei CloudEngine S5731-S24P4X
The Huawei CloudEngine S5731-S24P4X is a high-performance, next-generation gigabit access switch designed to meet the demands of modern enterprise networks. Built on Huawei's Versatile Routing Platform (VRP), this switch offers enhanced Layer 3 features, simplified operations and maintenance (O&M), intelligent stacking (iStack), flexible Ethernet networking, and mature IPv6 capabilities.
Key Features
▪ High-Performance Hardware: Equipped with 24 x 10/100/1000BASE-T PoE+ ports and 4 x 10GE SFP+ uplink ports, ensuring robust connectivity.
▪ Advanced Layer 3 Capabilities: Supports comprehensive Layer 3 routing protocols, including OSPF, IS-IS, BGP, and VRRP.
▪ Intelligent Stacking (iStack): Allows multiple switches to be managed as a single entity, simplifying network management.
▪ Enhanced Security Features: Offers features like MAC address authentication, 802.1X, and port security to safeguard the network.
▪ Flexible Power Options: Supports various power modules, including 600W and 1000W PoE AC power supplies.
Technical Specifications
Ports: 24 x 10/100/1000BASE-T PoE+ ports, 4 x 10GE SFP+ uplink ports
Switching Capacity: 128 Gbps
Forwarding Performance: 96 Mpps
Memory: 2 GB RAM, 1 GB Flash
Power Supply: Supports 600W and 1000W PoE AC power modules
Dimensions: 43.6 mm x 442 mm x 420 mm
Weight: Approximately 8.6 kg
Operating Temperature: 0°C to 50°C
Humidity: 5% to 95% (non-condensing)
Deployment Scenarios
The S5731-S24P4X is ideal for various deployment scenarios, including:
▪ Enterprise Campus Networks: Serves as an access switch, providing high-speed connectivity to end devices.
▪ Aggregation Layer: Functions as an aggregation switch, consolidating traffic from multiple access switches.
▪ Data Center Access: Connects servers and storage devices within data centers, ensuring low-latency communication.
Security and Management
▪ Comprehensive Security: Implements features like DHCP snooping, dynamic ARP inspection, and IP source guard to prevent unauthorized access.
▪ Efficient Management: Supports SNMP, RMON, Syslog, and NTP for streamlined network management.
▪ Web-Based GUI: Offers an intuitive web interface for easy configuration and monitoring.
Energy Efficiency
The S5731-S24P4X is designed with energy efficiency in mind:
▪ Dynamic Energy Saving: Automatically adjusts power consumption based on network traffic.
▪ Fan Speed Adjustment: Modulates fan speed according to system temperature, reducing noise and power usage.
▪ PoE Management: Provides intelligent PoE management, delivering power only when needed.
Conclusion
The Huawei CloudEngine S5731-S24P4X stands out as a versatile and high-performance switch, suitable for various network environments. Its robust feature set, combined with energy-efficient design and comprehensive security measures, makes it an excellent choice for enterprises seeking reliable and scalable network solutions.
Huawei CloudEngine Switch S5731-S24P4X (02353AHX/-001/-003/-004)
Huawei All Series Switches New and Used
For Huawei product list and quote, please visit: https://www.hi-network.com/categories/huawei or contact us at www.hi-network.com (Email: [email protected])
S5731-S24P4X (02353AHX/02353AHX-001/02353AHX-003)
Version Mapping
Table 4-1316 lists the mapping between the S5731-S24P4X chassis and software versions.
Table 4-1316 Version mapping
| Series | Model | Software Version |
|---|---|---|
| S5731-S | S5731-S24P4X | 02353AHX: V200R019C00 and later versions02353AHX-001: V200R020C10 and later versions02353AHX-003: V200R021C10SPC600 and later versions (If V200R021C10SPC500 is used, install V200R021HP0121 or a later patch.) |
Appearance and Structure

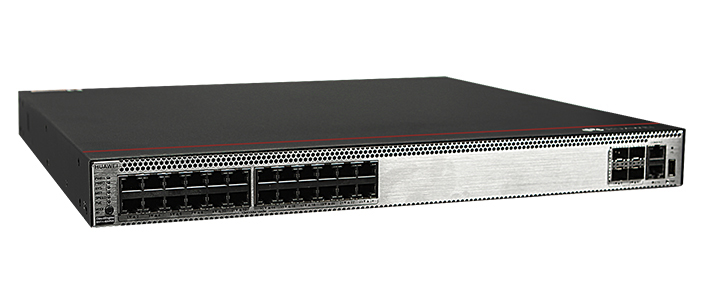

Figure 4-520 S5731-S24P4X (02353AHX) appearance
Figure 4-521 S5731-S24P4X (02353AHX-001/02353AHX-003) appearance
| 1 | Twenty-four PoE+ 10/100/1000BASE-T ports | 2 | Four 10GE SFP+ portsApplicable modules and cables:GE optical moduleGE-CWDM optical moduleGE-DWDM optical moduleGE copper module (100M/1000M auto-sensing)10GE SFP+ optical module (OSXD22N00 not supported)10GE-CWDM optical module10GE-DWDM optical modulePEN remote optical modules (V200R024C00 and later versions)1 m, 3 m, 5 m, and 10 m SFP+ high-speed copper cables3 m and 10 m SFP+ AOC cables0.5 m and 1.5 m SFP+ dedicated stack copper cables (used for zero-configuration stacking) |
| 3 | One console port | 4 | One ETH management port |
| 5 | One USB port | 6 | One PNP buttonNOTICE:To restore the factory settings and reset the switch, hold down the button for at least 6 seconds.To reset the switch, press the button.Resetting the switch will cause service interruption. Exercise caution when you press the PNP button. |
| 7 | Ground screwNOTE:It is used with a ground cable. | 8 | Fan module slot 1NOTE:Applicable fan module: FAN-023A-B (Fan Box (B, Fan Panel Side Exhaust)) |
| 9 | Fan module slot 2NOTE:Applicable fan module: FAN-023A-B (Fan Box (B, Fan Panel Side Exhaust)) | 10 | Power module slot 1NOTE:Applicable power module:PAC1000S56-CB (02312KND: 1000 W PoE AC&240 V DC Power Module)PAC1000S56-CB (02312KND-001: 1000 W PoE AC&240 V DC Power Module) (applicable in V200R019C10 and later versions)PAC1000S56-DB (1000 W PoE AC&240 V DC Power Module) (applicable in V200R020C10 and later versions)PDC1000S56-CB (1000 W PoE DC Power Module) (applicable in V200R021C00 and later versions)PAC600S56-CB (600 W PoE AC&240 V DC Power Module (Back to Front, Power panel side exhaust)) (applicable in V200R021C10 and later versions) |
| 11 | Power module slot 2NOTE:Applicable power module:PAC1000S56-CB (02312KND: 1000 W PoE AC&240 V DC Power Module)PAC1000S56-CB (02312KND-001: 1000 W PoE AC&240 V DC Power Module) (applicable in V200R019C10 and later versions)PAC1000S56-DB (1000 W PoE AC&240 V DC Power Module) (applicable in V200R020C10 and later versions)PDC1000S56-CB (1000 W PoE DC Power Module) (applicable in V200R021C00 and later versions)PAC600S56-CB (600 W PoE AC&240 V DC Power Module (Back to Front, Power panel side exhaust)) (applicable in V200R021C10 and later versions) | - | - |
Port Description
10/100/1000BASE-T port
A 10/100/1000BASE-T Ethernet electrical port sends and receives service data at 10/100/1000 Mbit/s, and must use an Ethernet cable. Table 4-1317 describes the attributes of a 10/100/1000BASE-T Ethernet electrical port.
Table 4-1317 Attributes of a 10/100/1000BASE-T Ethernet electrical port
| Attribute | Description |
|---|---|
| Connector type | RJ45 |
| Standards compliance | IEEE802.3, IEEE802.3u, IEEE802.3ab |
| Working mode | 10/100/1000 Mbit/s auto-sensing |
| Maximum transmission distance | 100 m |
10GE SFP+ optical port
A 10GE SFP+ Ethernet optical port supports auto-sensing to 1000 Mbit/s. It sends and receives service data at 1000 Mbit/s or 10 Gbit/s. Table 4-1318 describes the attributes of a 10GE SFP+ Ethernet optical port.
Table 4-1318 Attributes of a 10GE SFP+ port
| Attribute | Description |
|---|---|
| Connector type | LC/PC |
| Optical port attributes | Depend on the optical module used |
| Standards compliance | IEEE802.3ae |
| Working mode | GE/10GE auto-sensing |
Console port
The console port is connected to a console for on-site configuration. The port must use a console cable. The console port is used when a switch is powered on for the first time. For details about the attributes of a console port, see Table 4-1319.
Table 4-1319 Attributes of a console port
| Attribute | Description |
|---|---|
| Connector type | RJ45 |
| Standards compliance | RS-232 |
| Working mode | Duplex Universal Asynchronous Receiver/Transmitter (UART) |
| Baud rate | 9600 bit/s, 19200 bit/s, 38400 bit/s, 57600 bit/s, or 115200 bit/sDefault value: 9600 bit/s |
ETH management port
You can connect a switch to a configuration terminal or network management workstation through the ETH management port to configure the switch locally or remotely. The port must use an Ethernet cable. You can choose to download the software package through the ETH management port in the BootLoad menu. File transfer through the ETH management port is faster than transfer through the console port. Table 4-1320 describes the attributes of an ETH management port.
Table 4-1320 Attributes of an ETH management port
| Attribute | Description |
|---|---|
| Connector type | RJ45 |
| Standards compliance | IEEE802.3 |
| Working Mode | 10/100 Mbit/s auto-sensing |
| Maximum transmission distance | 100 mIn V200R012C00 and later versions, you can log in to the switch that contains the ETH management port for the first time through the ETH port. For details, see "First Login to a Switch" in the Configuration Guide - Basic Configuration. If you have logged in to the switch for the first time by pressing and holding the MODE button for 6 seconds or longer and saved the configuration, the default configuration on the ETH port will be cleared. In this case, you cannot log in to the switch for the first time through the ETH port. You are advised to log in to the switch for the first time through the ETH port. |
USB port
The USB port can have a USB flash drive connected to upgrade the switch, or transfer configuration files or other files. The USB port can only connect to a USB flash drive that complies with USB 2.0.
USB flash drives from different vendors differ in model compatibility and drivers. If a USB flash drive cannot be used, try to replace it with another one from a mainstream vendor. Switches support a maximum of 128 GB USB flash drives.
Indicator Description
The S5731-S24P4X has the same types of indicators as the S5731-S48P4X. For details, see Indicator Description.
Power Supply Configuration
The switch is a PoE switch and supports two power module slots, each of which can have a 1000 W PoE or 600 W PoE power module installed. Pluggable AC and DC PoE power modules can be used together in the same switch.
Table 4-1321 Power supply configurations
| Power Module 1 | Power Module 2 | Available PoE Power | Maximum Number of Ports (Fully Loaded) |
|---|---|---|---|
| 1000 W AC (220 V)1000 W DC | – | 760 W | 802.3af (15.4 W per port): 24802.3at (30 W per port): 24 |
| 1000 W AC (110 V) | – | 665 W | 802.3af (15.4 W per port): 24802.3at (30 W per port): 22 |
| 1000 W AC (220 V)1000 W DC | 1000 W AC (220 V)1000 W DC | 1600 W | 802.3af (15.4 W per port): 24802.3at (30 W per port): 24 |
| 1000 W AC (110 V)1000 W DC | 1000 W AC (110 V) | Versions earlier than V200R021C10: 1330 WV200R021C10 and later versions: 1520 W | 802.3af (15.4 W per port): 24802.3at (30 W per port): 24 |
| 600 W AC (220 V) | – | 380 W | 802.3af (15.4 W per port): 24802.3at (30 W per port): 12 |
| 600 W AC (110 V) | – | 95 W | 802.3af (15.4 W per port): 6802.3at (30 W per port): 3 |
| 600 W AC (220 V) | 600 W AC (220 V) | 950 W | 802.3af (15.4 W per port): 24802.3at (30 W per port): 24 |
| 600 W AC (110 V) | 600 W AC (110 V) | 380 W | 802.3af (15.4 W per port): 24802.3at (30 W per port): 12 |
| 1000 W AC (220 V)1000 W DC | 600 W AC (220 V) | 1330 W | 802.3af (15.4 W per port): 24802.3at (30 W per port): 24 |
When a switch has two power modules installed, the two power modules work in redundancy mode to provide power for the chassis and in load balancing mode to provide power for PDs.
Heat Dissipation
The S5731-S24P4X uses pluggable fan modules for forced air cooling. Air flows in from the front side and exhausts from the rear panel.
Technical Specifications
Table 4-1322 lists technical specifications of the S5731-S24P4X.
Table 4-1322 Technical specifications
| Item | Description |
|---|---|
| Memory (RAM) | 2 GB |
| Flash | 1 GB in total. To view the available flash memory size, run the display version command. |
| Mean time between failures (MTBF) | 57.21 years |
| Availability | > 0.99999 |
| Service port surge protection | Common mode: ±6 kV |
| Power supply surge protection | Using AC power modules: ±6 kV in differential mode, ±6 kV in common modeUsing DC power modules: ±2 kV in differential mode, ±4 kV in common mode |
| Dimensions (H x W x D) | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.)Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 43.6 mm x 442.0 mm x 448.0 mm (1.72 in. x 17.4 in. x 17.7 in.) |
| Weight (with packaging) | 8.6 kg (18.96 lb) |
| Stack ports | 10GE SFP+ ports on the front panel |
| RTC | Supported |
| RPS | Not supported |
| PoE | Supported |
| Rated voltage range | AC input: 100 V AC to 130 V AC, 200 V AC to 240 V AC, 50/60 HzHigh-Voltage DC input: 240 V DCDC input: -48 V DC to -60 V DC |
| Maximum voltage range | AC input: 90 V AC to 290 V AC, 45 Hz to 65 HzHigh-Voltage DC input: 190 V DC to 290 V DCDC input: -38.4 V DC to -72 V DC |
| Maximum power consumption (100% throughput, full speed of fans) | Not providing the PoE function: 121 W100% PoE loads: 977 W (PoE: 720 W) |
| Typical power consumption (30% of traffic load, tested according to ATIS standard) | 95 W |
| Operating temperature | -5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)NOTE:When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).The switch cannot be started when the ambient temperature is lower than 0°C (32°F). |
| Storage temperature | -40°C to +70°C (-40°F to +158°F) |
| Noise under normal temperature (27°C, sound power) | < 62.3 dB(A) |
| Relative humidity | 5% to 95%, noncondensing |
| Operating altitude | 0-5000 m (0-16404 ft.) |
| Certification | EMC certificationSafety certificationManufacturing certification |
| Part number | 02353AHX02353AHX-00102353AHX-003 |
