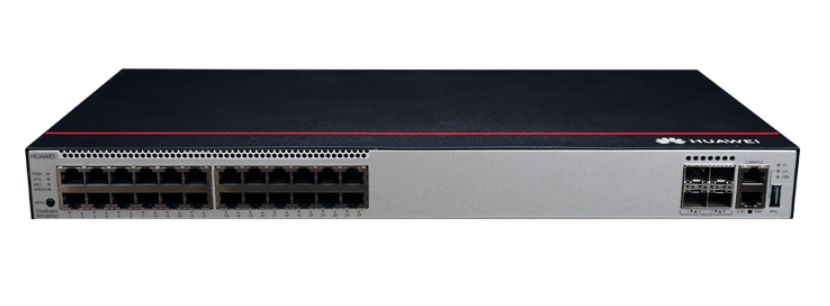

Introduction to Huawei S5731-S24T4X
The Huawei S5731-S24T4X is a high-performance gigabit access switch designed to meet the demands of modern enterprise networks. It offers a combination of advanced features, robust security, and flexible deployment options, making it suitable for various networking scenarios.
Key Features
▪ High Port Density: 24 x 10/100/1000Base-T Ethernet ports and 4 x 10GE SFP+ uplink ports provide ample connectivity options.
▪ Advanced Layer 3 Capabilities: Supports OSPF, IS-IS, BGP, and VRRP for dynamic routing and high availability.
▪ Enhanced Security: Features such as MAC address filtering, DHCP snooping, and ARP inspection protect against network threats.
▪ Intelligent Stack (iStack): Enables multiple switches to operate as a single logical unit for simplified management.
▪ Energy Efficiency: Intelligent fan speed adjustment and air cooling reduce power consumption and noise.
Technical Specifications
- Ports: 24 x 10/100/1000Base-T Ethernet ports, 4 x 10GE SFP+ uplink ports
- Switching Capacity: 128 Gbps / 672 Gbps
- Forwarding Performance: 96 Mpps
- Memory: 2 GB RAM, 1 GB flash memory
- Dimensions (H x W x D): 43.6 mm x 442 mm x 420 mm
- Weight: 8.4 kg
- Power Supply: AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz; High-voltage DC input: 190 V DC to 290 V DC; DC input: -38.4 V DC to -72 V DC
- Cooling: Air cooling with intelligent speed adjustment and pluggable fans
- Operating Temperature: -5°C to +45°C
- Relative Humidity: 5% to 95% (non-condensing)
Deployment Scenarios
The Huawei S5731-S24T4X is versatile and can be deployed in various scenarios:
Enterprise Campus Networks
Ideal for access or aggregation layers, providing high-speed connectivity and advanced features to support large-scale deployments.
Metropolitan Area Networks (MANs)
Suitable for access switches in MANs, offering robust performance and reliability for city-wide network infrastructures.
Small and Medium-Sized Enterprises (SMEs)
Provides a cost-effective solution with enterprise-grade features, ensuring network efficiency and security for SMEs.
Advanced Features
Layer 2 and Layer 3 Protocols
Supports a wide range of protocols, including STP, RSTP, MSTP, OSPF, IS-IS, BGP, and VRRP, enabling flexible network designs and high availability.
Security Mechanisms
Incorporates features like MAC address filtering, DHCP snooping, ARP inspection, and port security to safeguard the network against unauthorized access and attacks.
Quality of Service (QoS)
Offers comprehensive QoS policies, including traffic classification, queue scheduling, and congestion avoidance, ensuring optimal performance for critical applications.
IPv6 Support
Fully supports IPv6, facilitating seamless integration into modern network environments and future-proofing the infrastructure.
Management and Maintenance
Intelligent Stack (iStack)
Allows multiple switches to be managed as a single entity, simplifying network management and enhancing scalability.
Web-Based Management
Provides an intuitive web interface for configuration and monitoring, reducing the complexity of network operations.
SNMP and RMON
Supports SNMP v1/v2c/v3 and RMON, enabling efficient network monitoring and management through standard protocols.
Energy Efficiency and Reliability
Intelligent Cooling
Features intelligent fan speed adjustment and air cooling, optimizing power consumption and reducing operational noise.
Redundant Power Supply
Supports 1+1 power backup, ensuring uninterrupted operation and enhancing network reliability.
Conclusion
The Huawei S5731-S24T4X is a robust and versatile gigabit access switch that combines high performance, advanced features, and energy efficiency. Its comprehensive support for Layer 2 and Layer 3 protocols, enhanced security mechanisms, and intelligent management capabilities make it an ideal choice for various networking scenarios, including enterprise campuses, metropolitan area networks, and small to medium-sized enterprises.
Huawei CloudEngine S5731-S24T4X Switches
Huawei All Series Switches New and Used
For Huawei product list and quote, please visit: https://www.hi-network.com/categories/huawei or contact us at www.hi-network.com (Email: [email protected])
S5731-S24T4X (02353AHU/02353AHU-001)
Version Mapping
Table 4-1295 lists the mapping between the S5731-S24T4X chassis and software versions.
Table 4-1295 Version mapping
| Series | Model | Software Version |
|---|---|---|
| S5731-S | S5731-S24T4X | 02353AHU: V200R019C00 and later versions02353AHU-001: V200R020C10 and later versions |
Appearance and Structure
Figure 4-513 S5731-S24T4X (02353AHU) appearance
Figure 4-514 S5731-S24T4X (02353AHU-001) appearance
| 1 | Twenty-four 10/100/1000BASE-T ports | 2 | Four 10GE SFP+ portsApplicable modules and cables:GE optical moduleGE-CWDM optical moduleGE-DWDM optical moduleGE copper module (100M/1000M auto-sensing)10GE SFP+ optical module (OSXD22N00 not supported)10GE-CWDM optical module10GE-DWDM optical modulePEN remote optical modules (V200R024C00 and later versions)1 m, 3 m, 5 m, and 10 m SFP+ high-speed copper cables3 m and 10 m SFP+ AOC cables0.5 m and 1.5 m SFP+ dedicated stack copper cables (used for zero-configuration stacking) |
| 3 | One console port | 4 | One ETH management port |
| 5 | One USB port | 6 | One PNP buttonNOTICE:To restore the factory settings and reset the switch, hold down the button for at least 6 seconds.To reset the switch, press the button.Resetting the switch will cause service interruption. Exercise caution when you press the PNP button. |
| 7 | Ground screwNOTE:It is used with a ground cable. | 8 | Fan module slot 1NOTE:Applicable fan module: FAN-023A-B (Fan Box (B, Fan Panel Side Exhaust)) |
| 9 | Fan module slot 2NOTE:Applicable fan module: FAN-023A-B (Fan Box (B, Fan Panel Side Exhaust)) | 10 | Power module slot 1NOTE:Applicable power module:PAC600S12-CB (600 W AC&240 V DC Power Module)PAC600S12-EB (600 W AC&240 V DC Power Module)PAC600S12-DB (600 W AC&240 V DC Power Module) (applicable in V200R020C10 and later versions)PDC1000S12-DB (1000 W DC Power Module)PAC150S12-R (150 W AC Power Module)PDC180S12-CR (180 W DC Power Module) (applicable in V200R020C00 and later versions) |
| 11 | Power module slot 2NOTE:Applicable power module:PAC600S12-CB (600 W AC&240 V DC Power Module)PAC600S12-EB (600 W AC&240 V DC Power Module)PAC600S12-DB (600 W AC&240 V DC Power Module) (applicable in V200R020C10 and later versions)PDC1000S12-DB (1000 W DC Power Module)PAC150S12-R (150 W AC Power Module)PDC180S12-CR (180 W DC Power Module) (applicable in V200R020C00 and later versions) | - | - |
Port Description
10/100/1000BASE-T port
A 10/100/1000BASE-T Ethernet electrical port sends and receives service data at 10/100/1000 Mbit/s, and must use an Ethernet cable. Table 4-1296 describes the attributes of a 10/100/1000BASE-T Ethernet electrical port.
Table 4-1296 Attributes of a 10/100/1000BASE-T Ethernet electrical port
| Attribute | Description |
|---|---|
| Connector type | RJ45 |
| Standards compliance | IEEE802.3, IEEE802.3u, IEEE802.3ab |
| Working mode | 10/100/1000 Mbit/s auto-sensing |
| Maximum transmission distance | 100 m |
10GE SFP+ optical port
A 10GE SFP+ Ethernet optical port supports auto-sensing to 1000 Mbit/s. It sends and receives service data at 1000 Mbit/s or 10 Gbit/s. Table 4-1297 describes the attributes of a 10GE SFP+ Ethernet optical port.
Table 4-1297 Attributes of a 10GE SFP+ port
| Attribute | Description |
|---|---|
| Connector type | LC/PC |
| Optical port attributes | Depend on the optical module used |
| Standards compliance | IEEE802.3ae |
| Working mode | GE/10GE auto-sensing |
Console port
The console port is connected to a console for on-site configuration. The port must use a console cable. The console port is used when a switch is powered on for the first time. For details about the attributes of a console port, see Table 4-1298.
Table 4-1298 Attributes of a console port
| Attribute | Description |
|---|---|
| Connector type | RJ45 |
| Standards compliance | RS-232 |
| Working mode | Duplex Universal Asynchronous Receiver/Transmitter (UART) |
| Baud rate | 9600 bit/s, 19200 bit/s, 38400 bit/s, 57600 bit/s, or 115200 bit/sDefault value: 9600 bit/s |
ETH management port
You can connect a switch to a configuration terminal or network management workstation through the ETH management port to configure the switch locally or remotely. The port must use an Ethernet cable. You can choose to download the software package through the ETH management port in the BootLoad menu. File transfer through the ETH management port is faster than transfer through the console port. Table 4-1299 describes the attributes of an ETH management port.
Table 4-1299 Attributes of an ETH management port
| Attribute | Description |
|---|---|
| Connector type | RJ45 |
| Standards compliance | IEEE802.3 |
| Working Mode | 10/100 Mbit/s auto-sensing |
| Maximum transmission distance | 100 mIn V200R012C00 and later versions, you can log in to the switch that contains the ETH management port for the first time through the ETH port. For details, see "First Login to a Switch" in the Configuration Guide - Basic Configuration. If you have logged in to the switch for the first time by pressing and holding the MODE button for 6 seconds or longer and saved the configuration, the default configuration on the ETH port will be cleared. In this case, you cannot log in to the switch for the first time through the ETH port. You are advised to log in to the switch for the first time through the ETH port. |
USB port
The USB port can have a USB flash drive connected to upgrade the switch, or transfer configuration files or other files. The USB port can only connect to a USB flash drive that complies with USB 2.0.
USB flash drives from different vendors differ in model compatibility and drivers. If a USB flash drive cannot be used, try to replace it with another one from a mainstream vendor. Switches support a maximum of 128 GB USB flash drives.
Indicator Description
The S5731-S24T4X has similar indicators to those on the S5731-S48P4X except that the S5731-S24T4X does not have a PoE mode indicator. For details, see Indicator Description.
Power Supply Configuration
The switch can use a single power module or double power modules for 1+1 power redundancy. Pluggable AC and DC power modules can be used together in the same switch. However, the power modules with natural heat dissipation and the power modules with fan cannot be used at the same time.
Heat Dissipation
The S5731-S24T4X uses pluggable fan modules for forced air cooling. Air flows in from the front side and exhausts from the rear panel.
This figure only shows the airflow direction and does not depict the actual device.
Technical Specifications
Table 4-1300 lists technical specifications of the S5731-S24T4X.
Table 4-1300 Technical specifications
| Item | Description |
|---|---|
| Memory (RAM) | 2 GB |
| Flash | 1 GB in total. To view the available flash memory size, run the display version command. |
| Mean time between failures (MTBF) | 57.73 years |
| Availability | > 0.99999 |
| Service port surge protection | Common mode: ±6 kV |
| Power supply surge protection | Using AC power modules: ±6 kV in differential mode, ±6 kV in common modeUsing DC power modules: ±2 kV in differential mode, ±4 kV in common mode |
| Dimensions (H x W x D) | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.)Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 43.6 mm x 442.0 mm x 448.0 mm (1.72 in. x 17.4 in. x 17.7 in.) |
| Weight (with packaging) | 8.4 kg (18.52 lb) |
| Stack ports | 10GE SFP+ ports on the front panel |
| RTC | Supported |
| RPS | Not supported |
| PoE | Not supported |
| Rated voltage range | AC input: 100 V AC to 240 V AC, 50/60 HzHigh-Voltage DC input: 240 V DCDC input: -48 V DC to -60 V DC |
| Maximum voltage range | AC input: 90 V AC to 290 V AC, 45 Hz to 65 HzHigh-Voltage DC input: 190 V DC to 290 V DCDC input: -38.4 V DC to -72 V DC |
| Maximum power consumption (100% throughput, full speed of fans) | 114 W |
| Typical power consumption (30% of traffic load, tested according to ATIS standard) | 88 W |
| Operating temperature | -5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)NOTE:When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).The switch cannot be started when the ambient temperature is lower than 0°C (32°F). |
| Storage temperature | -40°C to +70°C (-40°F to +158°F) |
| Noise under normal temperature (27°C, sound power) | < 57.5 dB(A) |
| Relative humidity | 5% to 95%, noncondensing |
| Operating altitude | 0-5000 m (0-16404 ft.) |
| Certification | EMC certificationSafety certificationManufacturing certification |
| Part number | 02353AHU02353AHU-001 |
S5731-S24T4X (98011851)
Overview
Table 4-1301 Basic information about the S5731-S24T4X
| Item | Details |
|---|---|
| Description | S5731-S24T4X (24*10/100/1000BASE-T ports, 4*10GE SFP+ ports, without power module) |
| Part Number | 98011851 |
| Model | S5731-S24T4X |
| First supported version | V200R021C10SPC600 |
| Supported Patch Version | If V200R021C10SPC500 is used, install V200R021HP0121 or a later patch. |
Components
Figure 4-515 S5731-S24T4X appearance
| 1 | Twenty-four 10/100/1000BASE-T ports | 2 | Four 10GE SFP+ optical ports |
| 3 | One console port | 4 | One ETH management port |
| 5 | One USB port | 6 | One PNP buttonNOTICE:To restore the factory settings and reset the switch, hold down the button for at least 6 seconds.To reset the switch, press the button.Resetting the switch will cause service interruption. Exercise caution when you press the PNP button. |
| 7 | Ground screwNOTE:It is used with a ground cable. | 8 | Power module slot 1NOTE:Applicable power modules:PAC150S12-R (150 W AC Power Module)PDC180S12-CR (180 W DC Power Module)PAC600S12-CB (600 W AC&240 V DC Power Module)PAC600S12-DB (600 W AC&240 V DC Power Module)PAC600S12-EB (600 W AC&240 V DC Power Module) |
| 9 | Power module slot 2NOTE:Applicable power modules:PAC150S12-R (150 W AC Power Module)PDC180S12-CR (180 W DC Power Module)PAC600S12-CB (600 W AC&240 V DC Power Module)PAC600S12-DB (600 W AC&240 V DC Power Module)PAC600S12-EB (600 W AC&240 V DC Power Module) | - | - |
Ports
Table 4-1302 Ports on the S5731-S24T4X
| Port | Connector Type | Description | Available Components |
|---|---|---|---|
| 10/100/1000BASE-T port | RJ45 | A 10/100/1000BASE-T Ethernet electrical port sends and receives service data at 10/100/1000 Mbit/s. | Ethernet cable |
| 10GE SFP+ optical port | SFP+ | A 10GE SFP+ Ethernet optical port supports auto-sensing to 1000 Mbit/s. It sends and receives service data at 1000 Mbit/s or 10 Gbit/s. | GE eSFP optical modulesGE-CWDM eSFP optical modulesGE-DWDM eSFP optical modulesGE SFP copper module10GE SFP+ optical modules (OSXD22N00 not supported)10GE-CWDM SFP+ optical modules10GE-DWDM SFP+ optical modulesPEN remote optical modules (V200R024C00 and later versions)1 m, 3 m, 5 m, and 10 m SFP+ high-speed copper cables3 m and 10 m SFP+ AOC cables0.5 m and 1.5 m SFP+ dedicated stack cables (only for zero-configuration stacking) |
| Console port | RJ45 | The console port is connected to a console for on-site configuration. | Console cable |
| USB port | USB 2.0 Type A | The USB port can have a USB flash drive connected to upgrade the switch, or transfer configuration files or other files. The USB port can only connect to a USB flash drive that complies with USB 2.0.USB flash drives from different vendors differ in model compatibility and drivers. If a USB flash drive cannot be used, try to replace it with another one from a mainstream vendor. Switches support a maximum of 128 GB USB flash drives. | USB flash drive |
| ETH management port | RJ45 | You can connect a switch to a configuration terminal or network management workstation through the ETH management port to configure the switch locally or remotely.You can choose to download the software package through the ETH management port in the BootLoad menu. File transfer through the ETH management port is faster than transfer through the console port. | Ethernet cable |
Indicators and Buttons
The S5731-S24T4X has similar indicators to those on the S5731-S48P4X except that the S5731-S24T4X does not have a PoE mode indicator. For details, see the S5731-S48P4X.
Power Supply System
The switch can use a single power module or two power modules for 1+1 power redundancy. Pluggable AC and DC power modules can be used together in the same switch. However, the power modules with fans and power modules without fans cannot be installed on the same switch.
Heat Dissipation System
The switch has two built-in fans for forced air cooling. Air flows in from the left, right, and front sides, and exhausts from the rear panel.
This figure only shows the airflow direction and does not depict the actual device.
Technical Specifications
Table 4-1303 Technical specifications of the S5731-S24T4X
| Item | Specification |
|---|---|
| Dimensions without packaging (H x W x D) [mm(in.)] | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.54 in.)Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 448.0 mm (1.72 in. x 17.4 in. x 17.64 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 185.0 mm x 650.0 mm x 550.0 mm (7.28 in. x 25.59 in. x 21.65 in.) |
| Chassis height [U] | 1 U |
| Chassis material | Metal |
| Weight without packaging [kg(lb)] | 4.84 kg (10.67 lb) |
| Weight with packaging [kg(lb)] | 7.37 kg (16.25 lb) |
| Typical power consumption [W] | 61 W |
| Typical heat dissipation [BTU/hour] | 208.14 BTU/hour |
| Maximum power consumption [W] | 87 W |
| Maximum heat dissipation [BTU/hour] | 296.85 BTU/hour |
| Static power consumption [W] | 44 W |
| MTBF [years] | 86.81 years |
| Availability | > 0.99999 |
| Noise at normal temperature (acoustic power) [dB(A)] | 45.62 dB(A) |
| Noise at normal temperature (acoustic pressure) [dB(A)] | 31.94 dB(A) |
| Number of card slots | 0 |
| Number of power slots | 2 |
| Number of fans modules | 2 |
| Redundant power supply | 1+1Pluggable AC and DC power modules can be used together in the same switch, but power modules that use natural heat dissipation and power modules that use air cooling cannot be used together. |
| Long-term operating temperature [°C(°F)] | -5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.) |
| Restriction on the operating temperature variation rate [°C(°F)] | When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).Devices cannot start when the temperature is lower than 0°C (32°F).The operating temperature of the switch is -5°C to +45°C (23°F to 113°F) when 10GE SFP+ optical modules with 40 km or longer transmission distances are used. |
| Storage temperature [°C(°F)] | –40°C to +70°C (–40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Long-term operating altitude [m(ft.)] | 0–5000 m (0–16404 ft.) |
| Storage altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Power supply mode | Pluggable power supply |
| Rated input voltage [V] | AC input: 100 V AC to 240 V AC; 50/60 HzHigh-voltage DC input: 240 V DCDC input: –48 V DC to –60 V DC |
| Input voltage range [V] | AC input: 90 V AC to 290 V AC; 45–65 HzHigh-voltage DC input: 190 V DC to 290 V DCDC input: -38.4 V DC to -72 V DC |
| Maximum input current [A] | The current specifications are related to the pluggable power module. For details, see Pluggable Power Modules. |
| Memory | 2 GB |
| Flash memory | 1 GB in total. To view the available flash memory size, run the display version command. |
| Console port | RJ45 |
| Eth Management port | RJ45 |
| USB | Supported |
| RTC | Supported |
| RPS input | Not supported |
| Service port surge protection [kV] | Common mode: ±7 kV |
| Power supply surge protection [kV] | Configured with AC power modules: ±6 kV in differential mode and ±6 kV in common modeConfigured with DC power modules: ±2 kV in differential mode and ±4 kV in common mode |
| Ingress protection level (dustproof/waterproof) | IP20 |
| Types of fans | Built-in |
| Heat dissipation mode | Air cooling for heat dissipation, intelligent fan speed adjustment |
| Airflow direction | Air flows in from the left, right, and front, and flows out from the rear. |
| PoE | Not supported |
| Certification | EMC certificationSafety certificationManufacturing certification |
