The S5735-L24T4S-A is an enterprise access switch from Huawei CloudEngine S5735-L series, designed for small and medium-sized campus and branch networks. It delivers reliable Layer 2 and basic Layer 3 switching capabilities, helping organizations build stable, secure, and scalable network infrastructures. With energy-efficient hardware and flexible uplink options, it meets modern enterprise connectivity requirements.
Hardware Design and Interfaces
Port Configuration
The switch provides fixed Ethernet access ports and high-speed uplinks to support aggregation and core connectivity.
▪ Ports: 24 x 10/100/1000BASE-T Ethernet ports
▪ Uplink Interfaces: 4 x 10GE SFP+ ports
▪ Switching Capacity: Non-blocking switching architecture
Security and Application Scenarios
Enterprise Use
The S5735-L24T4S-A integrates security features such as access control and traffic protection, making it suitable for office buildings, education networks, and enterprise access layers where consistent performance and secure connectivity are required.
Download Datasheet: S5735-L24T4S-A (98010914) Datasheet.pdf
For more datasheets, please go to the Download tab on each product details page, or search in the Datasheet Download Center.
S5735-L24T4S-A
Version Mapping
Table 4-1140 lists the mapping between the S5735-L24T4S-A chassis and software versions.
Table 4-1140 Version mapping
| Series | Model | Software Version |
|---|---|---|
| S5735-L | S5735-L24T4S-A | V200R019C00 to V200R024C00 versionsNOTE:V200R021C01 is not supported. |
Appearance and Structure

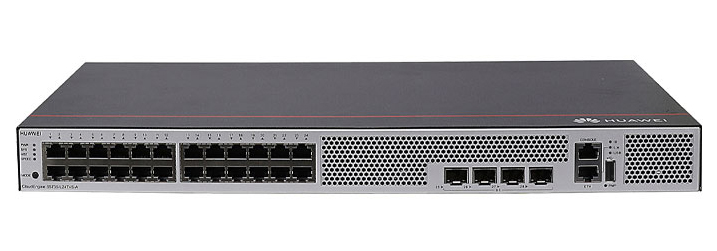

Figure 4-452 S5735-L24T4S-A appearance
| 1 | Twenty-four 10/100/1000BASE-T ports | 2 | Four 1000BASE-X portsApplicable modules:FE optical module (applicable in V200R021C00 and later versions)GE optical moduleGE-CWDM optical moduleGE-DWDM optical moduleGE copper module10GE SFP+ optical module (only used for stack connection, a maximum transmission distance of 0.4 km, OSXD22N00 not supported, applicable in V200R019C10 and later versions)1 m and 3 m SFP+ high-speed copper cables (only used for stack connection, applicable in V200R019C10 and later versions)3 m and 10 m SFP+ AOC cables (only used for stack connection, applicable in V200R019C10 and later versions)0.5 m and 1.5 m SFP+ dedicated stack copper cables (used for zero-configuration stacking, applicable in V200R019C10 and later versions) |
| 3 | One console port | 4 | One ETH management port |
| 5 | One USB port | 6 | One PNP buttonNOTICE:To restore the factory settings and reset the switch, hold down the button for at least 6 seconds.To reset the switch, press the button.Resetting the switch will cause service interruption. Exercise caution when you press the PNP button. |
| 7 | Ground screwNOTE:It is used with a ground cable. | 8 | Jack for AC power cable locking strapNOTE:The AC power cable locking strap is not delivered with the switch. |
| 9 | AC socketNOTE:It is used with an AC power cable. | - | - |
Port Description
10/100/1000BASE-T port
A 10/100/1000BASE-T Ethernet electrical port sends and receives service data at 10/100/1000 Mbit/s, and must use an Ethernet cable. Table 4-1141 describes the attributes of a 10/100/1000BASE-T Ethernet electrical port.
Table 4-1141 Attributes of a 10/100/1000BASE-T Ethernet electrical port
| Attribute | Description |
|---|---|
| Connector type | RJ45 |
| Standards compliance | IEEE802.3, IEEE802.3u, IEEE802.3ab |
| Working mode | 10/100/1000 Mbit/s auto-sensing |
| Maximum transmission distance | 100 m |
1000BASE-X port
When a 1000BASE-X port uses a GE optical module, it can only transmit and receive data at 1000 Mbit/s and does not support the 100 Mbit/s transmission speed. When a 1000BASE-X port uses a FE optical module, it can transmit and receive data at 100 Mbit/s. When a 1000BASE-X port uses a GE copper module, it can transmit and receive data at 10 Mbit/s, 100 Mbit/s, or 1000 Mbit/s. Table 4-1142 describes the attributes of a 1000BASE-X Ethernet optical port.
Table 4-1142 Attributes of a 1000BASE-X Ethernet optical port
| Attribute | Description |
|---|---|
| Connector type | LC/PC |
| Optical port attributes | Depend on the module used |
| Standards compliance | IEEE802.3z |
Console port
The console port is connected to a console for on-site configuration. The port must use a console cable. The console port is used when a switch is powered on for the first time. For details about the attributes of a console port, see Table 4-1143.
Table 4-1143 Attributes of a console port
| Attribute | Description |
|---|---|
| Connector type | RJ45 |
| Standards compliance | RS-232 |
| Working mode | Duplex Universal Asynchronous Receiver/Transmitter (UART) |
| Baud rate | 9600 bit/s, 19200 bit/s, 38400 bit/s, 57600 bit/s, or 115200 bit/sDefault value: 9600 bit/s |
ETH management port
You can connect a switch to a configuration terminal or network management workstation through the ETH management port to configure the switch locally or remotely. The port must use an Ethernet cable. You can choose to download the software package through the ETH management port in the BootLoad menu. File transfer through the ETH management port is faster than transfer through the console port. Table 4-1144 describes the attributes of an ETH management port.
Table 4-1144 Attributes of an ETH management port
| Attribute | Description |
|---|---|
| Connector type | RJ45 |
| Standards compliance | IEEE802.3 |
| Working Mode | 10/100 Mbit/s auto-sensing |
| Maximum transmission distance | 100 mIn V200R012C00 and later versions, you can log in to the switch that contains the ETH management port for the first time through the ETH port. For details, see "First Login to a Switch" in the Configuration Guide - Basic Configuration. If you have logged in to the switch for the first time by pressing and holding the MODE button for 6 seconds or longer and saved the configuration, the default configuration on the ETH port will be cleared. In this case, you cannot log in to the switch for the first time through the ETH port. You are advised to log in to the switch for the first time through the ETH port. |
USB port
The USB port can have a USB flash drive connected to upgrade the switch, or transfer configuration files or other files. The USB port can only connect to a USB flash drive that complies with USB 2.0.
USB flash drives from different vendors differ in model compatibility and drivers. If a USB flash drive cannot be used, try to replace it with another one from a mainstream vendor. Switches support a maximum of 128 GB USB flash drives.
Indicator Description
The S5735-L24T4S-A has similar indicators to those on the S5735-L12P4S-A except that the S5735-L24T4S-A does not have a PoE mode indicator. For details, see Indicator Description.
Power Supply Configuration
The S5735-L24T4S-A has a built-in AC power module and does not support pluggable power modules.
Heat Dissipation
The S5735-L24T4S-A has no fans and uses natural heat dissipation.
Technical Specifications
Table 4-1145 lists technical specifications of the S5735-L24T4S-A.
Table 4-1145 Technical specifications
| Item | Description |
|---|---|
| Memory (RAM) | 1 GB |
| Flash | 512 MB in total. To view the available flash memory size, run the display version command. |
| Mean time between failures (MTBF) | 111.94 years |
| Availability | > 0.99999 |
| Service port surge protection | Common mode: ±7 kV |
| Power supply surge protection | ±6 kV in differential mode, ±6 kV in common mode |
| Dimensions (H x W x D) | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.7 in.)Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 227.0 mm (1.72 in. x 17.4 in. x 8.94 in.) |
| Weight (with packaging) | 4.08 kg (9 lb) |
| Stack ports | Any 10/100/1000BASE-T ports or 1000BASE-X ports (applicable in V200R019C10 and later versions) |
| RTC | Not supported |
| RPS | Not supported |
| PoE | Not supported |
| Rated voltage range | AC input: 100 V AC to 240 V AC, 50/60 HzHigh-Voltage DC input: 240 V DC |
| Maximum voltage range | AC input: 90 V AC to 264 V AC, 47 Hz to 63 HzHigh-Voltage DC input: 190 V DC to 290 V DC |
| Maximum power consumption (100% throughput) | 34 W |
| Typical power consumption (30% of traffic load)Tested according to ATIS standardEEE enabledNo PoE power consumption | 28 W |
| Operating temperature | -5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)NOTE:When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).The switch cannot be started when the ambient temperature is lower than 0°C (32°F).The operating temperature of the switch is -5°C to +40°C (23°F to 104°F) when it uses GE SFP optical modules with 40 km or longer transmission distance.When SFP+ copper cables or dedicated stack cables are used to set up a stack, the switch can operate in the following temperature range:-5°C to +45°C (23°F to 113°F) (installed in the ventilation cabinet, with the wind speed of at least 40 LFM)When SFP+ AOC cables or 10GE SFP+ optical modules are used to set up a stack, the switch can operate in the following temperature range:-5°C to +45°C (23°F to 113°F) (installed in the ventilation cabinet shipped with fans with a fan speed of at least 200 LFM) |
| Storage temperature | -40°C to +70°C (-40°F to +158°F) |
| Noise under normal temperature (27°C, sound power) | Noise-free (no fans) |
| Relative humidity | 5% to 95%, noncondensing |
| Operating altitude | 0-5000 m (0-16404 ft.) |
| Certification | EMC certificationSafety certificationManufacturing certification |
| Part number | 98010914 |
