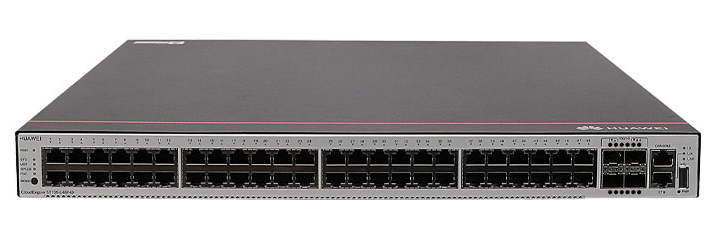

The S5735-L48P4X-A is an enterprise-class gigabit access switch designed to meet the evolving needs of campus networks, enterprise offices, education institutions, hospitality environments, and smart buildings. As part of Huawei S5735 series, this model delivers high-performance Layer 3 switching, advanced security features, Power over Ethernet (PoE+) capability, and 10GE uplink flexibility. Built for reliability and scalability, the S5735-L48P4X-A supports intelligent traffic management, cloud-based deployment options, and simplified operations. It plays a critical role in modern digital infrastructure where stability, speed, and centralized management are essential.
Product Architecture and Design
Hardware Design
The S5735-L48P4X-A features a fixed configuration architecture optimized for enterprise access layers. It integrates high-density gigabit ports with 10GE uplink interfaces to ensure sufficient bandwidth aggregation toward the core layer. The switch is built with enterprise-grade components to ensure long-term stability and continuous operation. It supports rack-mount installation and features a compact design suitable for standard 19-inch cabinets.
Cooling and Power System
The device uses intelligent heat dissipation mechanisms to maintain stable operating temperatures. Its power supply system is engineered to support PoE+ loads efficiently while ensuring consistent system performance. Energy-efficient design contributes to lower operational costs and improved sustainability.
Key Technical Specifications
▪ Ports: 48 x 10/100/1000Base-T PoE+ Ethernet ports, 4 x 10GE SFP+ uplink ports
▪ Switching Capacity: High-performance switching fabric optimized for gigabit access and 10GE aggregation
▪ Forwarding Performance: Wire-speed packet forwarding across all ports
▪ PoE Standard: IEEE 802.3af and IEEE 802.3at compliant
▪ MAC Address Table: Large capacity MAC address support for enterprise-scale deployments
▪ Layer Support: Layer 2 and Layer 3 switching capabilities
▪ VLAN Support: Extensive VLAN configurations including 802.1Q
▪ Management Interfaces: Console port, Ethernet management port
▪ Routing Protocols: Static routing and dynamic routing support
▪ Security Features: Advanced access control and authentication mechanisms
Port Configuration and Connectivity
Gigabit Access Ports
The 48 gigabit Ethernet ports provide high-density access for end-user devices such as PCs, IP phones, wireless access points, surveillance cameras, and IoT endpoints. Each port supports auto-negotiation and auto MDI/MDIX functionality, simplifying deployment. With full PoE+ support, the switch eliminates the need for separate power cables for compatible devices, reducing cabling complexity and installation costs.
10GE Uplink Interfaces
The four 10GE SFP+ uplink ports ensure sufficient bandwidth for aggregation to core switches. These high-speed uplinks prevent congestion in high-traffic environments and support scalable campus architecture. They allow flexible fiber module selection based on distance requirements, including short-range and long-range optical connections.
Power over Ethernet (PoE+) Capabilities
PoE+ Support
The S5735-L48P4X-A supports IEEE 802.3af and 802.3at standards, delivering power and data over a single Ethernet cable. This is especially beneficial in environments with wireless access points, IP cameras, VoIP phones, and access control devices. PoE+ ensures devices receive adequate power without the need for additional electrical infrastructure, making deployments faster and more flexible.
Intelligent Power Management
The switch includes intelligent power allocation mechanisms that dynamically distribute power based on connected device requirements. It prioritizes critical devices when power budgets are limited and protects the system from overload.
Layer 2 and Layer 3 Features
Layer 2 Switching Functions
The device supports essential Layer 2 protocols such as VLAN, STP, RSTP, MSTP, link aggregation, and port mirroring. These capabilities ensure loop prevention, efficient bandwidth utilization, and traffic segmentation across enterprise networks. Advanced features like storm control and broadcast suppression help maintain stable performance even under abnormal traffic conditions.
Layer 3 Routing Capabilities
The S5735-L48P4X-A provides Layer 3 static routing functionality, allowing traffic to be routed between VLANs directly at the access layer. This reduces dependency on core switches and enhances network efficiency. Dynamic routing protocol support enables better adaptability in medium to large-scale network environments.
Security and Access Control
User Authentication Mechanisms
The switch supports multiple authentication methods including 802.1X, MAC address authentication, and portal authentication. These mechanisms ensure only authorized users can access the network. Integration with centralized authentication servers enhances identity-based network access control.
Network Protection Features
The S5735-L48P4X-A includes DHCP snooping, ARP inspection, IP source guard, and access control lists (ACLs). These features protect the network from common attacks such as ARP spoofing and unauthorized access. Advanced security policies can be configured per port or per VLAN, enabling granular traffic control.
Intelligent Management and Cloud Integration
Centralized Network Management
The switch supports centralized management platforms, enabling administrators to configure, monitor, and troubleshoot devices from a single interface. This significantly reduces operational complexity in large networks. It provides SNMP support, command-line interface (CLI), and web-based management options.
Cloud-Based Deployment
The S5735-L48P4X-A can integrate with cloud-based management solutions, allowing zero-touch provisioning and remote deployment. This feature simplifies network expansion and reduces on-site configuration requirements. Cloud management enhances visibility, analytics, and automated troubleshooting.
Performance Optimization and Traffic Management
Quality of Service (QoS)
The device supports advanced QoS policies, including traffic classification, rate limiting, and priority scheduling. This ensures latency-sensitive applications such as voice and video receive appropriate bandwidth allocation. Multiple queue scheduling mechanisms enable precise traffic control across diverse application types.
Traffic Monitoring and Analysis
Traffic statistics collection and monitoring tools help administrators analyze network performance. Port mirroring and flow monitoring enable detailed inspection for troubleshooting and optimization.
Reliability and High Availability
Link Aggregation and Redundancy
The switch supports link aggregation technologies that combine multiple physical links into a single logical link. This increases bandwidth and provides redundancy in case of link failure. Redundant network design ensures minimal service interruption during maintenance or unexpected outages.
Loop Prevention Mechanisms
Spanning Tree Protocol variants help prevent network loops and broadcast storms. These mechanisms maintain stable Layer 2 topologies even in complex campus environments.
Deployment Scenarios
Enterprise Office Networks
In corporate environments, the S5735-L48P4X-A serves as a reliable access-layer switch. It connects employee devices, IP phones, and wireless access points while providing secure segmentation and routing.
Education and Campus Networks
Schools and universities benefit from high port density and PoE+ capabilities, which support wireless coverage expansion and surveillance systems across large campuses.
Hospitality and Commercial Buildings
Hotels, malls, and commercial complexes use the switch to power IP cameras, Wi-Fi infrastructure, and access control systems efficiently.
Energy Efficiency and Environmental Adaptability
Green Networking Features
Energy-efficient Ethernet support reduces power consumption during low traffic periods. Intelligent power management optimizes energy usage without sacrificing performance.
Operating Environment
The device is designed to operate within standard enterprise temperature and humidity ranges, ensuring reliable performance in various indoor deployment scenarios.
Advantages of Choosing S5735-L48P4X-A
High Port Density
With 48 PoE+ access ports and 4 high-speed uplinks, the switch delivers exceptional scalability for growing organizations.
Integrated PoE+
The combination of data and power simplifies infrastructure deployment and reduces overall cabling costs.
Advanced Security
Comprehensive access control and protection features ensure secure and stable network operations.
Flexible Management Options
Support for both traditional and cloud-based management enhances deployment flexibility and operational efficiency.
Conclusion
The S5735-L48P4X-A is a powerful and versatile enterprise access switch engineered to deliver high performance, advanced security, and intelligent management capabilities. Its combination of 48 gigabit PoE+ ports and four 10GE uplinks makes it ideal for high-density access scenarios across enterprise, education, hospitality, and commercial environments. By integrating Layer 2 and Layer 3 functionality, intelligent power management, comprehensive security features, and cloud-ready deployment options, the S5735-L48P4X-A provides a future-ready networking solution. Organizations seeking reliability, scalability, and simplified operations will find this switch well-suited for modern digital transformation initiatives.
