The S5735-L48T4X-A is an enterprise-class Gigabit Ethernet switch developed by Huawei as part of the S5735-L series. Designed for campus networks, branch offices, and medium-sized enterprise environments, this switch delivers reliable performance, flexible connectivity, and advanced management features. It offers high-density Gigabit access ports combined with high-speed 10 Gigabit uplinks, making it ideal for networks that require scalable bandwidth and efficient traffic management.
Huawei designed the S5735-L48T4X-A to support modern network architectures that demand high availability, efficient data forwarding, and simplified network management. With its powerful switching capacity and robust forwarding performance, the switch ensures stable data transmission even under heavy network loads. The device integrates multiple network services and intelligent management capabilities that allow administrators to maintain control over large or distributed networks.
One of the key benefits of the S5735-L48T4X-A is its balance between performance and reliability. The device uses advanced hardware architecture and optimized software features to support enterprise-grade network functions such as VLAN segmentation, static and dynamic routing, and MAC address management. These features help organizations maintain efficient communication between devices while improving network security and traffic control.
Another important aspect of this switch is its flexible deployment capability. It can be used as an access-layer switch in campus networks or as an aggregation device in smaller network environments. The presence of high-speed 10GE uplink ports enables seamless integration with core network infrastructure and high-bandwidth services such as data centers and cloud-based applications.
The switch also supports advanced virtualization and fabric technologies, allowing it to operate as part of a larger network fabric. This simplifies configuration and improves overall network management efficiency. As organizations expand their IT infrastructure, devices like the S5735-L48T4X-A play a vital role in maintaining high-performance connectivity and centralized control.
In addition to performance and flexibility, the S5735-L48T4X-A focuses on reliability and durability. It is built with high-quality components and advanced cooling systems to ensure stable operation in demanding environments. The device also includes surge protection and strong hardware protection features to maintain service continuity.
Overall, the Huawei S5735-L48T4X-A switch provides a powerful networking solution for enterprises seeking reliable Gigabit access with high-speed uplinks. Its combination of performance, advanced features, and robust design makes it a practical choice for modern enterprise networks.
Hardware Architecture and Design
The hardware architecture of the S5735-L48T4X-A is designed to deliver both high performance and operational reliability. The switch features a compact 1U rack-mountable design that fits easily into standard network cabinets. Its physical structure ensures efficient airflow and cooling while maintaining stable operation under continuous workloads.

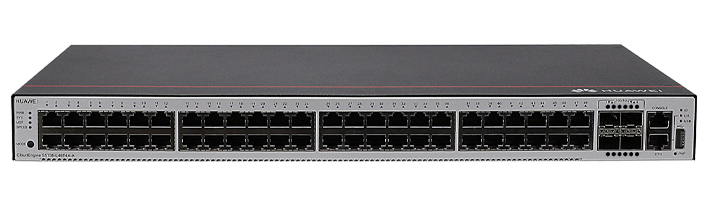

Front Panel and Port Layout
The front panel of the switch contains the primary network interfaces and management ports. The design focuses on accessibility and efficient cable management, allowing network administrators to quickly connect devices and monitor network activity.
▪ Access Ports: 48 × 10/100/1000BASE-T Ethernet ports providing Gigabit connectivity for end devices.
▪ Uplink Ports: 4 × 10GE SFP+ ports designed for high-speed network uplinks.
▪ Console Port: RJ45 console interface for configuration and troubleshooting.
▪ Management Port: Dedicated Ethernet management interface.
▪ USB Port: USB interface for configuration backup and upgrades.
Internal Components
The internal design of the S5735-L48T4X-A includes high-performance processors, memory modules, and integrated switching chips. These components work together to process network traffic efficiently and maintain stable system operation.
The switch includes a multi-core processor and integrated memory resources that enable the device to run Huawei’s networking operating system. This architecture ensures that the switch can support advanced networking features while maintaining consistent performance.
Key Technical Specifications
The S5735-L48T4X-A includes a range of technical specifications that define its performance and capabilities in enterprise network environments.
▪ Ports: 48 × 10/100/1000BASE-T ports, 4 × 10GE SFP+ uplink ports.
▪ Forwarding Performance: Up to 132 million packets per second (Mpps).
▪ Switching Capacity: Up to 432 Gbps switching capacity.
▪ Memory (RAM): 1 GB system memory.
▪ Flash Storage: 512 MB internal flash memory.
▪ Power Supply Type: Built-in AC power supply.
▪ Voltage Range: 100 V AC to 240 V AC, 50/60 Hz.
▪ Maximum Power Consumption: Approximately 54 W.
▪ Dimensions: 43.6 mm × 442 mm × 220 mm.
▪ Weight: About 4.4 kg.
▪ Reliability (MTBF): High reliability with long operational lifetime.
Network Performance and Switching Capacity
The S5735-L48T4X-A provides high switching performance suitable for enterprise traffic loads. With a forwarding capability of more than 100 million packets per second, the switch ensures smooth and stable network operation.
The high switching capacity enables simultaneous traffic flows across multiple ports without congestion. This is particularly beneficial for environments with a large number of users or devices such as enterprise offices, campuses, and institutions.
The presence of four 10GE uplink ports allows high-bandwidth connections to aggregation or core switches. These high-speed links ensure that data traffic between network layers remains fast and reliable.
Management Interfaces and Configuration Options
Effective management is essential for enterprise networking equipment. The S5735-L48T4X-A offers several configuration and monitoring options that simplify device administration.
Console Port Management
The console port provides direct local access to the switch using a serial connection. Network administrators commonly use this interface during initial device setup or troubleshooting.
Ethernet Management Port
The dedicated management port allows administrators to manage the device remotely through the network. It supports remote configuration, monitoring, and system maintenance operations.
Advanced Network Features
The S5735-L48T4X-A supports multiple advanced networking technologies that enhance network efficiency, scalability, and security.
VLAN and Network Segmentation
The switch supports thousands of VLANs, allowing administrators to segment networks into smaller logical groups. VLAN segmentation improves traffic control and enhances network security.
Routing Capabilities
The device supports Layer 3 routing features such as static routing and dynamic routing protocols. These functions allow the switch to efficiently manage traffic between different network segments.
MAC Address Management
The switch automatically learns and manages MAC addresses connected to each port. This intelligent learning mechanism ensures accurate packet forwarding and optimized network communication.
Cooling System and Reliability
The S5735-L48T4X-A includes an efficient cooling system designed to maintain stable operating temperatures during continuous use. The airflow design ensures that heat generated by internal components is effectively dissipated.
The device also includes surge protection and hardware reliability mechanisms that protect network infrastructure from electrical fluctuations and environmental risks.
Power Supply and Energy Efficiency
The built-in AC power supply provides reliable power delivery to the device. The switch supports a wide input voltage range, allowing it to operate in different power environments.
Energy efficiency is another advantage of the S5735-L48T4X-A. Its optimized hardware design reduces energy consumption while maintaining high switching performance.
Typical Deployment Scenarios
The S5735-L48T4X-A is suitable for a variety of enterprise networking scenarios.
▪ Campus network access layer
▪ Enterprise office networks
▪ Branch office connectivity
▪ Educational institutions
▪ Government network infrastructure
Conclusion
The Huawei S5735-L48T4X-A is a powerful enterprise switch designed to deliver reliable connectivity and efficient network management. With 48 Gigabit access ports and four 10 Gigabit uplink ports, the device provides strong connectivity for modern organizations.
Its advanced switching performance, flexible deployment options, and robust design make it suitable for campus networks, enterprise offices, and branch infrastructure.
By combining high performance, scalability, and reliability, the S5735-L48T4X-A helps organizations build stable and efficient network environments capable of supporting future digital growth.
