The Cisco Catalyst™ IE9300 Rugged Series ushers in mainstream adoption of Gigabit / 10 Gigabit Ethernet connectivity in compact 1RU, rack-mount switches that are purpose-built for a wide variety of industrial and extended enterprise applications.

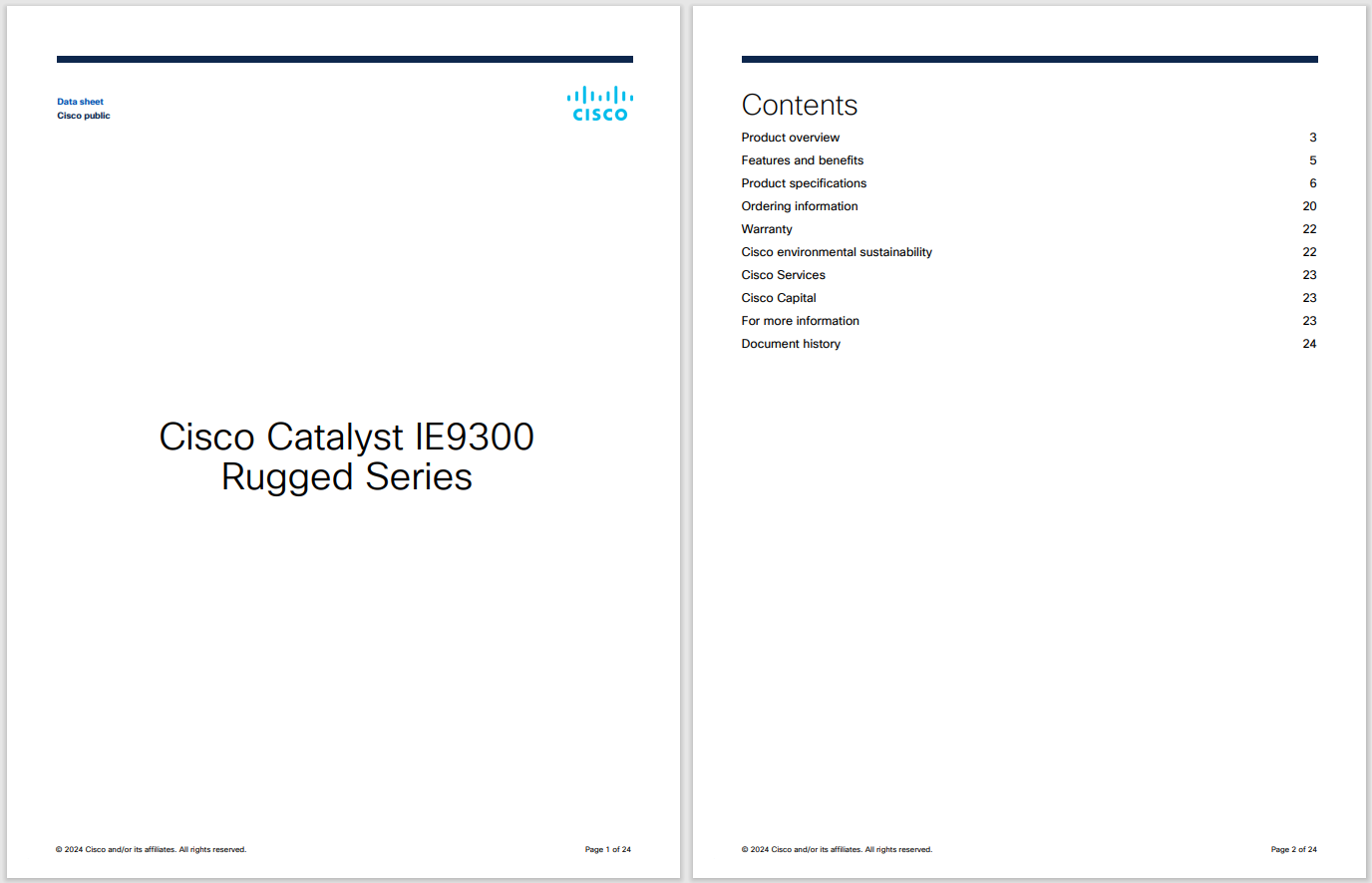

Download Datasheet: Cisco Catalyst IE9300 Rugged Series Datasheet.pdf

Product overview

Cisco Catalyst IE9300 Rugged Series switches with 28 ports of Gigabit and 10 Gigabit Ethernet interfaces deliver high-speed Ethernet connectivity in a compact form factor and are designed for a wide range of industrial applications for which hardened products are required. The platform is built to withstand harsh environments in manufacturing, energy, transportation, mining, smart cities, and oil and gas. The switches are ideal for outdoor enclosures or harsh environments while adhering to overall IT network design, compliance, and performance requirements.

These switches run Cisco IOS® XE, an operating system with built-in security and trust, featuring Secure Boot, image signing, and the Cisco® Trust Anchor module. Cisco IOS XE also provides API-driven configuration with open APIs and data models.

The Cisco Catalyst IE9300 Rugged Series can be managed with a powerful management tool, Cisco Catalyst Center, and can easily be set up with a completely redesigned user-friendly modern GUI tool called WebUI. The platform supports Full Flexible NetFlow (FNF) for real-time visibility into traffic patterns and threat analysis with support for Cisco Cyber Vision and Cisco Secure Network Analytics.

The IE9300 Rugged Series switches offer:

●      Robust resiliency enabled by features such as dual ring design, Resilient Ethernet Protocol (REP), Parallel Redundancy Protocol (PRP)1, PROFINET, Media Redundancy Protocol (MRP) ring, High Availability Seamless Redundancy (HSR)1 ring, EtherChannel, integrated redundant power supplies, dying gasp, etc.

●      True zero-touch replacement for middle-of-the-night or middle-of-nowhere failures

●      Line-rate, low-latency forwarding

●      Simplified software management

●      Support for industrial automation protocols EtherNet/IP (CIP) and PROFINET

¹Supported on IE-9320-26S2C and IE-9320-22S2C4X only.

Figure 1.

IE-9310-26S2C switch

Figure 2.

IE-9320-26S2C switch with advanced feature set

Figure 3.

IE-9320-22S2C4X Switch with conformal coating and advanced feature set, including support for GPS/IRIG-B input

Figure 4.

IE-9320-24P4S Switch

Figure 5.

IE-9320-24T4X Switch

Figure 6.

IE-9320-24P4X Switch

Figure 7.

IE-9320-16P8U4X Switch with multi-gigabit and 4PPoE

Features and benefits

Table 1.        Features and benefits

Table 2.        Product feature sets

Product specifications

Table 3 highlights the hardware configuration for Cisco Catalyst IE9300 Rugged Series switches.

Table 3.        Hardware configurations

Tables 4 and 5 highlight the hardware specifications for the Cisco Catalyst IE9300 Rugged Series switches.

Table 4.        Hardware specifications

¹User-accessible flash memory is approximately 2.5 GB.²The SD card and USB are optional and are not shipped by default with the switch.³USB 2.0 to load system images and set configurations.

Table 5.        Physical configurations

¹Chassis only (does not include power supplies or blank cover).²System power consumption is indicative only and will depend on multiple factors:

●      The type and number of Small Form-Factor Pluggable (SFP) modules used.

●      The type and efficiency of the power supply used.

●      The number of power supplies: One power supply versus two power supplies used in the system.

Table 6 highlights the performance and scalability features of the Cisco Catalyst IE9300 Rugged Series switches.

Table 6.        Performance and scalability features

¹The SD card is optional and is not shipped by default with the switch.

Table 7 highlights the power supply options for the Cisco Catalyst IE9300 Rugged Series switches.

Table 7.        Power supply options¹

¹All power supplies have their power output galvanically isolated from the power input.

Table 8 highlights the PoE capability of the Cisco Catalyst IE9300 Rugged Series switches.

Table 8.        Available power¹ budget for PoE/PoE+ with different power supply wattage

¹150W and 250W Power Supplies cannot be used with the 400W Power Supply in a load sharing configuration.²400W power supplies are required to support 4PPoE Type 4 (PoE Class 7 and 8, PDs requiring greater than 60W). Any of the supported power supplies can be used for PoE+ and 4PPoE Type 3 (PoE Class 1 through 6) up to 60W.

Tables 9 and 10 highlight the software features supported by the Cisco Catalyst IE9300 Rugged Series switches.

Table 9.        Key supported software features (Network Essentials license)

¹PTP is not supported on 2.5G ports of the IE-9320-16P8U4X-E/A²Supported on IE-9320-22S2C4X-E/-A only³Supported on the IE-9320-26S2C-E/-A and IE-9320-22S2C4X-E/-A only

Table 10.     Key supported software features (Network Advantage license)

¹Network Advantage license includes all Network Essentials features.

Table 11 highlights the details of Cisco Catalyst Center Essentials and Cisco Catalyst Center Advantage licenses for the IE9300 Rugged Series switches.

Table 11.     Cisco Catalyst Center DNA Essentials and Cisco Catalyst Center DNA Advantage licenses

¹Cisco Catalyst Center DNA Advantage license can be paired only with the Network Advantage license.²Cisco Catalyst Center licenses for Industrial Ethernet switches are add-on/optional and not mandatory. They do not include Network Tier features.

Table 12 highlights the compliance specifications for the Cisco Catalyst IE9300 Rugged Series switches.

Table 12.     Compliance specifications

¹ For IE-9320-22S2C4X-E/A only² Safety approved up to 60°

Table 13 highlights the Mean Time Between Failures (MTBF) for the Cisco Catalyst IE9300 Rugged Series switches.

Table 13.     MTBF information

Table 14 highlights information about management and standards for the Cisco Catalyst IE9300 Rugged Series switches.

Table 14.     Management and standards

Table 15 highlights information about supported SFP modules for the Cisco Catalyst IE9300 Rugged Series switches.

Table 15.     SFP support

¹If nonindustrial SFPs (EXT, COM) are used, the switch operating temperature must be derated.²Degrades PTP performance.

Ordering information

Table 16 lists the ordering information for the Cisco Catalyst IE9300 Rugged Series switches.

Table 16.     Ordering information

Warranty

Five-year limited hardware warranty on all IE9300 product IDs and power supplies (see Table 15 above). See the following link for more details on the warranty: https://www.cisco.com/c/en/us/products/warranties/warranty-doc-c99-740591.html.

Cisco environmental sustainability

Information about Cisco’s environmental sustainability policies and initiatives for our products, solutions, operations, and extended operations or supply chain is provided in the “Environment Sustainability” section of Cisco’s Corporate Social Responsibility (CSR) Report.

Reference links to information about key environmental sustainability topics (mentioned in the “Environment Sustainability” section of the CSR Report) are provided in the following table:

Reference links to product-specific environmental sustainability information that is mentioned in relevant sections of this data sheet are provided in the following table:

Cisco makes the packaging data available for informational purposes only. It may not reflect the most current legal developments, and Cisco does not represent, warrant, or guarantee that it is complete, accurate, or up to date. This information is subject to change without notice.

Cisco Services

For information on services, visit https://www.cisco.com/web/services/.

Cisco Capital

Flexible payment solutions to help you achieve your objectives

Cisco Capital® makes it easier to get the right technology to achieve your objectives, enable business transformation, and stay competitive. We can help you reduce the total cost of ownership, conserve capital, and accelerate growth. In more than 100 countries, our flexible payment solutions can help you acquire hardware, software, services, and complementary third-party equipment in easy, predictable payments. Learn more.

For more information

For more information about the Cisco IE 9300 Series, visit https://www.cisco.com/go/ie9300 or contact your local account representative.
