The Huawei CloudEngine S6730-H28Y4C is a high-performance switch designed to meet the demands of modern data centers and campus networks. Equipped with advanced features and robust hardware, it ensures efficient and reliable network operations.
Key Features
▪ High Port Density: 28 x 25 GE SFP28 ports and 4 x 100 GE QSFP28 ports.
▪ High Switching Capacity: Up to 2.4 Tbit/s, ensuring non-blocking data forwarding.
▪ Advanced Wireless Management: Integrated WLAN AC function managing up to 1,024 APs.
▪ Comprehensive Security: Built-in security probes for traffic anomaly detection and threat analysis.
▪ Flexible Power Supply: Supports dual pluggable power modules for 1+1 redundancy.
Hardware Specifications
Ports and Interfaces
Fixed Ports: 28 x 25 GE SFP28 ports, 4 x 100 GE QSFP28 ports
Management Ports: ETH management port, Console port (RJ45), USB 2.0 port
Performance
Switching Capacity: 2.2/2.4 Tbit/s
Forwarding Performance: 1,071 Mpps
Power and Environmental
Power Supply: Dual pluggable power modules, supporting 1+1 redundancy
Input Voltage: AC: 100V-240V, DC: -48V to -60V
Power Consumption: Operational: 150W (Maximum)
Operating Temperature: 0°C to 45°C
Storage Temperature: -40°C to +70°C
Relative Humidity: 5% to 95%, non-condensing
Advanced Features
Integrated WLAN AC Functionality
The S6730-H28Y4C integrates WLAN AC capabilities, allowing it to manage up to 1,024 Access Points (APs). This integration simplifies network architecture and reduces the need for additional hardware, providing a cost-effective solution for large-scale wireless deployments.
Comprehensive Security Measures
With built-in security probes, the switch can detect abnormal traffic patterns and analyze potential threats, even within encrypted traffic. This proactive approach transforms traditional passive security measures into active defenses, ensuring a secure network environment.
Flexible Power Supply Options
The S6730-H28Y4C supports both AC and DC power modules, which can be used simultaneously. This flexibility allows for tailored power solutions based on specific deployment scenarios and ensures continuous operation through power redundancy.
Applications
Data Center Access
In data centers, the S6730-H28Y4C serves as a high-speed access switch, providing 25 Gbit/s connectivity to servers. Its high port density and switching capacity ensure efficient handling of large volumes of data traffic.
Campus Network Aggregation
Within campus networks, this switch functions effectively at the aggregation layer, consolidating traffic from multiple access switches and providing high-speed uplinks to the core network. Its advanced features support diverse campus networking requirements.
Conclusion
The Huawei CloudEngine S6730-H28Y4C is a versatile and powerful switch, ideal for modern networking environments. Its combination of high-performance hardware, integrated wireless management, comprehensive security features, and flexible power options make it a reliable choice for both data centers and campus networks.
Huawei CloudEngine S6730-H28Y4C Switches
Huawei All Series Switches New and Used
For Cisco product list and quote, please visit: https://www.hi-network.com/categories/cisco or contact us at www.hi-network.com (Email: [email protected])
Overview
Table 4-218 Basic information about the S6730-H28Y4C
| Item | Details |
|---|---|
| Description | S6730-H28Y4C (28*25GE SFP28 ports, 4*100GE QSFP28 ports, without power module) |
| Part Number | 02353LGV |
| Model | S6730-H28Y4C |
| First supported version | V200R020C00 |
Components

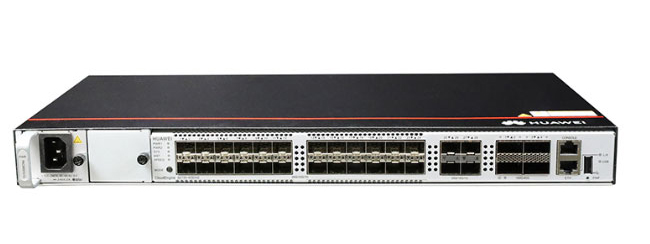

Figure 4-91 S6730-H28Y4C appearance
| 1 | NOTE: | 2 | NOTE: |
| 3 | Twenty-eight 1GE/10GE/25GE SFP28 optical ports | 4 | Four 40GE/100GE QSFP28 optical ports |
| 5 | One console port | 6 | One ETH management port |
| 7 | One USB port | 8 | NOTICE: |
| - | NOTE: | - | - |
Ports
Table 4-219 Ports on the S6730-H28Y4C
| Port | Connector Type | Description | Available Components |
|---|---|---|---|
| 1GE/10GE/25GE SFP28 optical port | SFP28 | A 1GE/10GE/25GE SFP28 optical port sends and receives service data at 1 Gbit/s, 10 Gbit/s, or 25 Gbit/s.When a 25GE optical module is connected to a port, the port can automatically adjust its rate to 25 Gbit/s.When a 10GE optical module is connected to a port, the port can automatically adjust its rate to 10 Gbit/s.Before installing a GE optical module or GE copper module on a port, run the port mode ge command to configure the port to work at 1 Gbit/s. | GE eSFP optical modulesGE-CWDM eSFP optical modulesGE-DWDM eSFP optical modulesGE SFP copper module10GE SFP+ optical modules (OSXD22N00 and SFP-10G-ZR not supported)10GE SFP+ copper module (supported in V200R023C10 and later versions)25GE SFP28 optical modules1 m, 2 m, 3 m, 5 m, and 10 m SFP+ high-speed copper cables3 m and 10 m SFP+ AOC cables1 m SFP28 high-speed copper cable3 m, 5 m, 7 m, and 10 m SFP28 AOC cables |
| 40GE/100GE QSFP28 optical port | QSFP28 | A 40GE/100GE QSFP28 optical port sends and receives service traffic at 40 Gbit/s or 100 Gbit/s.A QSFP28 optical port cannot be split into four 10GE ports, regardless of whether the port uses a QSFP28 or QSFP+ optical module. | 40GE QSFP+ optical modules100GE QSFP28 optical modules1 m, 3 m, and 5 m QSFP+ to QSFP+ high-speed copper cables10 m QSFP+ to QSFP+ AOC cable1 m QSFP28 to QSFP28 high-speed copper cable10 m QSFP28 to QSFP28 AOC cable2 m QSFP28 dedicated stack cable (supported in V200R020C10 and later versions) |
| Console port | RJ45 | The console port is connected to a console for on-site configuration. | Console cable |
| ETH management port | RJ45 | You can connect a switch to a configuration terminal or network management workstation through the ETH management port to configure the switch locally or remotely.You can choose to download the software package through the ETH management port in the BootLoad menu. File transfer through the ETH management port is faster than transfer through the console port. | Ethernet cable |
| USB port | USB 2.0 Type A | The USB port can have a USB flash drive connected to upgrade the switch, or transfer configuration files or other files. The USB port can only connect to a USB flash drive that complies with USB 2.0.USB flash drives from different vendors differ in model compatibility and drivers. If a USB flash drive cannot be used, try to replace it with another one from a mainstream vendor. Switches support a maximum of 128 GB USB flash drives. | USB flash drive |
Indicators and Buttons
The S6730-H28Y4C has the same types of indicators as the S6730-H24X4Y4C. For details, see the S6730-H24X4Y4C.
Power Supply System
The switch can use a single power module or two power modules for 1+1 power redundancy. Pluggable AC and DC power modules can be used together in the same switch.
Heat Dissipation System
The switch has three built-in fans for forced air cooling. Air flows in from the left side and front panel, and exhausts from the right side.
This figure only shows the airflow direction and does not depict the actual device.
Technical Specifications
Table 4-220 Technical specifications of the S6730-H28Y4C
| Item | Specification |
|---|---|
| Dimensions without packaging (H x W x D) [mm(in.)] | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.66 in.)Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 231.0 mm (1.72 in. x 17.40 in. x 9.09 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 115.0 mm x 545.0 mm x 360.0 mm (4.53 in. x 21.46 in. x 14.17 in.) |
| Chassis height [U] | 1 U |
| Chassis material | Metal |
| Weight without packaging [kg(lb)] | 3.4 kg (7.5 lb) |
| Weight with packaging [kg(lb)] | 4.65 kg (10.25 lb) |
| Typical power consumption [W] | 186 W |
| Typical heat dissipation [BTU/hour] | 634.65 BTU/hour |
| Maximum power consumption [W] | 253 W |
| Maximum heat dissipation [BTU/hour] | 863.26 BTU/hour |
| Static power consumption [W] | 116 W |
| MTBF [years] | 54.68 years |
| MTTR [hours] | 2 hours |
| Availability | > 0.99999 |
| Noise at normal temperature (acoustic power) [dB(A)] | 64.5 dB(A) |
| Noise at normal temperature (acoustic pressure) [dB(A)] | 51.7 dB(A) |
| Number of card slots | 0 |
| Number of power slots | 2 |
| Number of fans modules | 3 |
| Redundant power supply | 1+1Pluggable AC and DC power modules can be used together in the same switch. |
| Long-term operating temperature [°C(°F)] | -5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.) |
| Restriction on the operating temperature variation rate [°C(°F)] | When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).The device cannot start when the temperature is lower than 0°C (32°F).When the QSFP-100G-ER4 or QSFP-100G-LR1 optical module is used, the operating temperature ranges from -5°C to +40°C (23°F to 104°F). |
| Storage temperature [°C(°F)] | -40°C to +70°C (-40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% to 95%, noncondensing |
| Long-term operating altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Storage altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Power supply mode | Pluggable power supply |
| Rated input voltage [V] | AC input: 100 V AC to 240 V AC; 50/60 HzHigh-voltage DC input: 240 V DCDC input: –48 V DC to –60 V DC |
| Input voltage range [V] | AC input: 90–290 V AC; 45–65 HzHigh-voltage DC input: 190 V DC to 290 V DCDC input: -38.4 V DC to -72 V DC |
| Maximum input current [A] | The current specifications depend on the pluggable power modules in use. For details, see the related power module specifications. |
| Memory | 4 GB |
| Flash memory | 2 GB in total. To view the available flash memory size, run the display version command. |
| Console port | RJ45 |
| Eth Management port | RJ45 |
| USB | Supported |
| RTC | Supported |
| RPS input | Not supported |
| Service port surge protection [kV] | - |
| Power supply surge protection [kV] | AC power module configured: ±6 kV in differential mode, ±6 kV in common modeDC power module configured: ±2 kV in differential mode, ±4 kV in common mode |
| Ingress protection level (dustproof/waterproof) | IP20 |
| Types of fans | Built-in |
| Heat dissipation mode | Heat dissipation with fan, intelligent fan speed adjustment |
| Airflow direction | Air intake from left and front, air exhaustion from right |
| PoE | Not supported |
| Certification | EMC certificationSafety certificationManufacturing certification |
